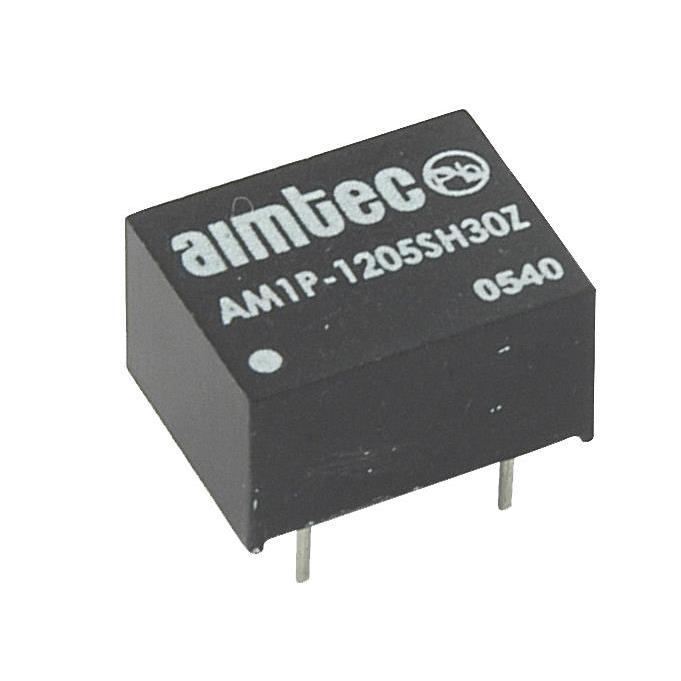

AM1P Series

Manufacturer: aimtec

Catalog

Catalog

DC DC CONVERTER 18V 1W

...

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Package / Case	Mounting Type	Efficiency	Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Power (Watts)	Current - Output (Max) [Max]
aimtec AM1P-0318SH30Z	55.5 mA	2.97 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	3000 V	8-DIP Module	Through Hole	76 %	Isolated Module	18 V	3.63 V	1
aimtec AM1P-0324SZ	50 mA	2.97 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module	Through Hole	75 %	Isolated Module	24 V	3.63 V	1
aimtec AM1P-050505DZ		4.5 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module	Through Hole	81 %	Isolated Module	5 V	5.5 V	2	100 mA	100 mA	5 V
aimtec AM1P-050909DZ	56 mA	4.5 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module	Through Hole	79 %	Isolated Module	9 V	5.5 V	2			9 V
aimtec AM1P-0503SH30Z	303 mA	4.5 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	3000 V	8-DIP Module	Through Hole	78 %	Isolated Module	3.3 V	5.5 V	1
aimtec AM1P-1203SZ	303 mA	10.8 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module	Through Hole	77 %	Isolated Module	3.3 V	13.2 V	1
aimtec AM1P-050707DZ	69 mA	4.5 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module 6 Leads	Through Hole	77 %	Isolated Module	7.2 V	5.5 V	2			-7.2 V	993.6 mW	69 mA
aimtec AM1P-2415SZ	66.6 mA	21.6 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module 4 Leads	Through Hole	80 %	Isolated Module	15 V	26.4 V	1				999 mW
aimtec AM1P-0303SZ	303 mA	2.97 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	1000 V	8-DIP Module	Through Hole	74 %	Isolated Module	3.3 V	3.63 V	1
aimtec AM1P-1215SH30Z	66.6 mA	10.8 V	CE	85 °C	-40 C	ITE (Commercial)	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	3000 V	8-DIP Module	Through Hole	79 %	Isolated Module	15 V	13.2 V	1				1 mW
