C0663 Series
Manufacturer: Prysmian Group
Beta
⌘K

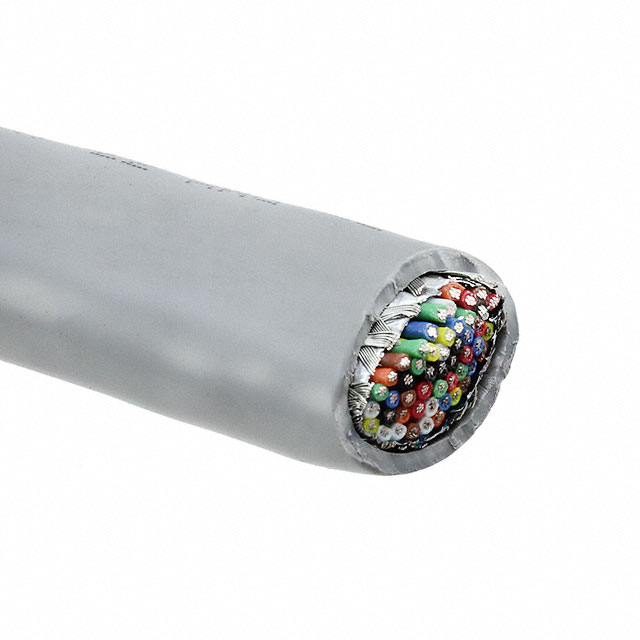

MULTI-PAIR 50COND 22AWG GRAY
| Part | Shield Type | Wire Gauge | Cable Type | Jacket (Insulation) Material | Ratings | Voltage | Usage | Jacket Color | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Number of Conductors | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Braid Foil | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 300 VDC | Computer | Gray | Copper Annealed Tinned | 15.75 mm | 0.62 in | 304.8 m | 1000 ft | 50 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | ||
Prysmian Group | Braid Foil | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 300 VDC | Computer | Gray | Copper Annealed Tinned | 15.75 mm | 0.62 in | 304.8 m | 1000 ft | 50 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 65 % 100 % | Copper Flexfoil® Tinned |
Prysmian Group | Braid Foil | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 300 VDC | Computer | Gray | Copper Annealed Tinned | 15.75 mm | 0.62 in | 152.4 m | 500 ft | 50 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 65 % 100 % | Copper Flexfoil® Tinned |
Prysmian Group | Braid Foil | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 300 VDC | Computer | Gray | Copper Annealed Tinned | 15.75 mm | 0.62 in | 152.4 m | 500 ft | 50 | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 0.813 mm | 0.032 in | 80 °C | -20 ░C |
