FH33 Series

Catalog

CONN FFC BOTTOM 45POS 0.5MM R/A

Part	Mating Cycles	Connector/Contact Type	Mounting Type	Current Rating (Amps)	Actuator Material	Pitch [x]	Pitch [x]	Locking Feature	Termination	Cable End Type	Voltage Rating	Material Flammability Rating	Contact Finish	Contact Material	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	FFC, FCB Thickness	Flat Flex Type	Housing Material	Contact Finish Thickness
Hirose Electric USA, Inc. FH33-45S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	45	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33-30S-0.5SH		Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	30	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash
Hirose Electric USA, Inc. FH33J-40S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	40	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flash
Hirose Electric USA, Inc. FH33-30S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	30	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33J-10S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	10	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH33-45S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	45	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash
Hirose Electric USA, Inc. FH33-12S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	12	0.3 mm	FFC FPC	Polyamide (PA) Nylon
Hirose Electric USA, Inc. FH33-14S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Nylon Polyamide (PA)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V	UL94 V-0	Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	14	0.3 mm	FFC FPC	Polyamide (PA) Nylon	Flash

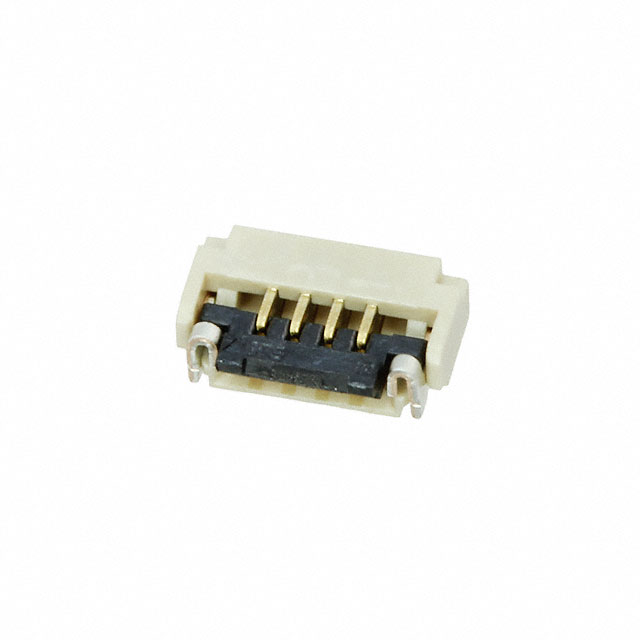

Hirose Electric USA, Inc. FH33J-4S-0.5SH(10)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	4	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flash
Hirose Electric USA, Inc. FH33J-18S-0.5SH(99)	20	Contacts Bottom	Surface Mount Right Angle	0.5 A	Polyphenylene Sulfide (PPS)	0.5 mm	0.02 in	Flip Lock	Solder	Tapered	50 V		Gold	Phosphor Bronze	0.047 "	1.2 mm	85 °C	-55 °C	18	0.3 mm	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free
