FH34SRJ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN FFC FPC 16POS 0.5MM R/A
| Part | Actuator Color | Mating Cycles | Current Rating (Amps) | Housing Color | Locking Feature | Flat Flex Type | Termination | Material Flammability Rating | Voltage Rating | Number of Positions | Pitch | Pitch | Contact Finish | Housing Material | Height Above Board [z] | Height Above Board [z] | Actuator Material | Mounting Type | Contact Material | FFC, FCB Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Connector/Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 16 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | |||
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 24 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | |||

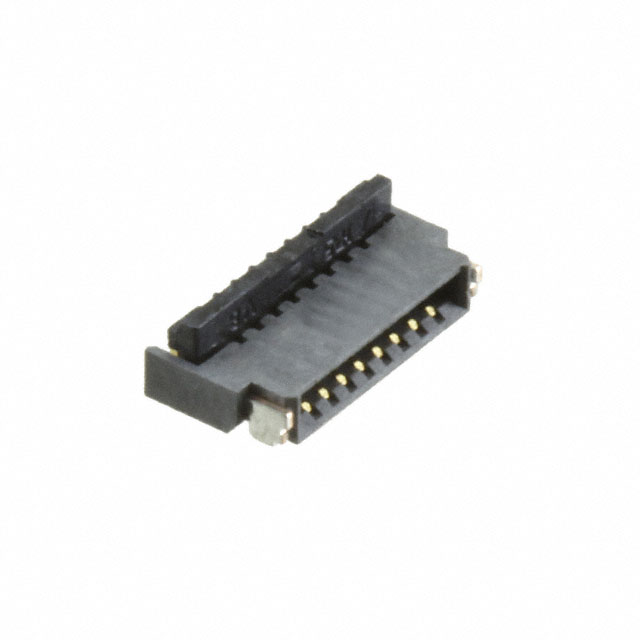

 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 8 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | |||
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 12 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | |||
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Flip Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 45 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Straight | Contacts Top and Bottom | 1.97 Áin | 0.05 Ám | Solder Retention Zero Insertion Force (ZIF) |
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Flip Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 5 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | Solder Retention Zero Insertion Force (ZIF) | ||
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 26 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | |||

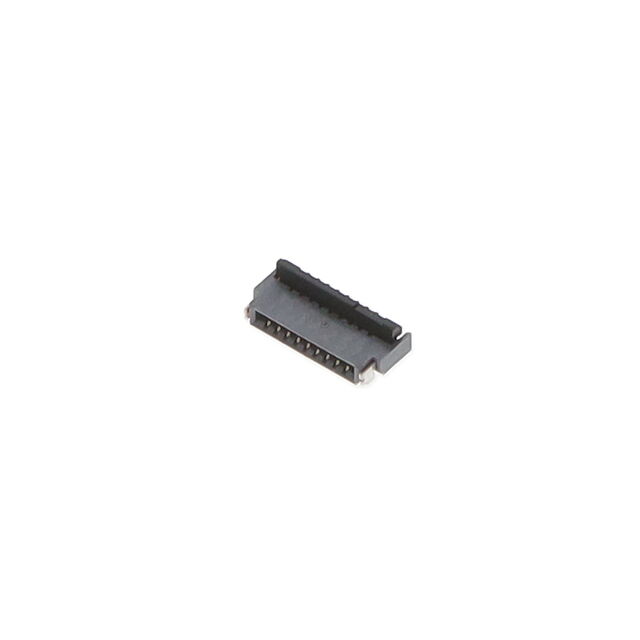

 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Flip Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 9 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | Solder Retention Zero Insertion Force (ZIF) | ||
 Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 11 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom | 1.97 Áin | 0.05 Ám | |
Hirose Electric Co Ltd | Black | 20 | 0.5 A | Gray | Backlock Rotary Lock | FFC FPC | Solder | UL94 V-0 | 50 V | 11 | 0.02 " | 0.5 mm | Gold | Liquid Crystal Polymer (LCP) Halogen Free | 1 mm | 0.039 " | Polyamide (PA) Nylon | Right Angle Surface Mount | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | Tapered | Contacts Top and Bottom |
