HRM-200 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN SMA FOR FLEXIBLE CBL
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Body Finish | Connector Type | Contact Termination | Shield Termination | Number of Ports | Housing Color | Connector Style | Center Contact Material | Mounting Type | Fastening Type | Impedance | Frequency - Max [Max] | Cable Group | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | 1000 | Nickel | Plug Male Pin | Solder | Clamp | 1 | Silver | SMA | Brass | Free Hanging (In-Line) | Threaded | 50 Ohms | 8 GHz | ||
Hirose Electric Co Ltd | ||||||||||||||||||||
Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Stainless Steel | -55 C | 125 °C | Gold | 1000 | Gold | Plug Male Pin | Solder | Crimp | 1 | Gold | SMA | Brass | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | 12 GHz | RG-405 (.085" Semi Rigid) | |

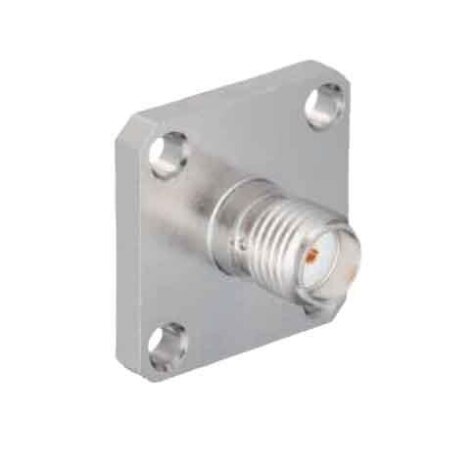

 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | 1000 | Nickel | Female Socket Jack | Solder | Clamp | 1 | Silver | SMA | Beryllium Copper | Panel Mount | Threaded | 50 Ohms | 8 GHz | Flange | |
Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | 1000 | Nickel | Female Socket Jack | Solder | Crimp | 1 | Silver | SMA | Beryllium Copper | Free Hanging (In-Line) | Threaded | 50 Ohms | 6000 MHz | 1.5D-2W | |
Hirose Electric Co Ltd | ||||||||||||||||||||

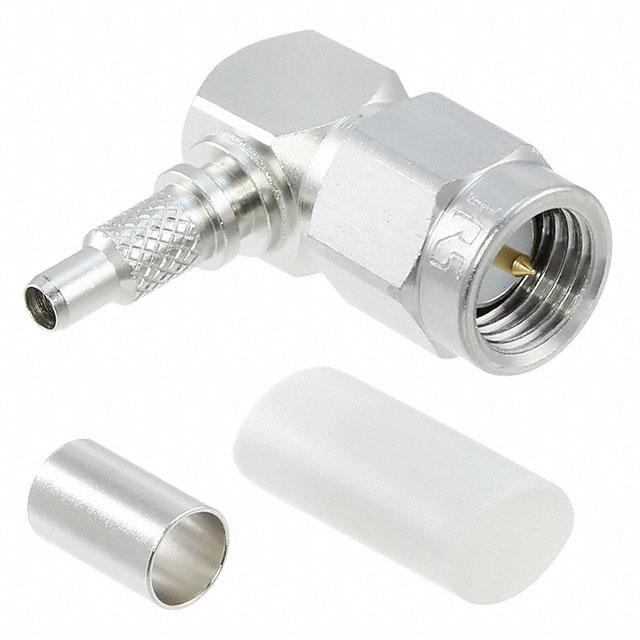

 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Stainless Steel | -30 ░C | 85 °C | Gold | 1000 | Nickel | Plug Male Pin | Solder | Crimp | 1 | Silver | SMA | Brass | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | 1 GHz | 1.5D-2V | |
Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Stainless Steel | -55 C | 125 °C | Gold | 1000 | Gold | Plug Male Pin | Solder | Crimp | 1 | Gold | SMA | Brass | Free Hanging (In-Line) | Threaded | 50 Ohms | 1 GHz | 1.5D-HQEW | |
Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 125 °C | Gold | 1000 | Nickel | Female Socket Jack | Solder | Clamp | 1 | Silver | SMA | Beryllium Copper | Panel Mount | Threaded | 50 Ohms | 8 GHz | Flange | |

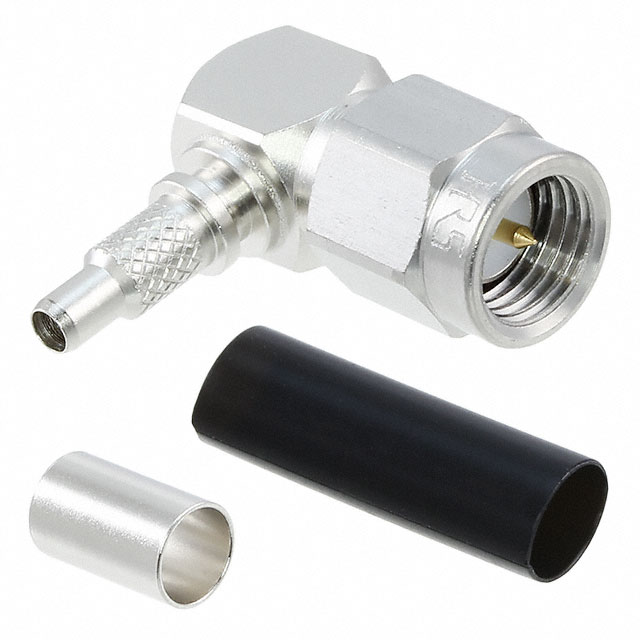

 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Stainless Steel | -30 ░C | 85 °C | Gold | 1000 | Nickel | Plug Male Pin | Solder | Crimp | 1 | Silver | SMA | Brass | Free Hanging (In-Line) Right Angle | Threaded | 50 Ohms | 1 GHz | 1.5D-2W |
