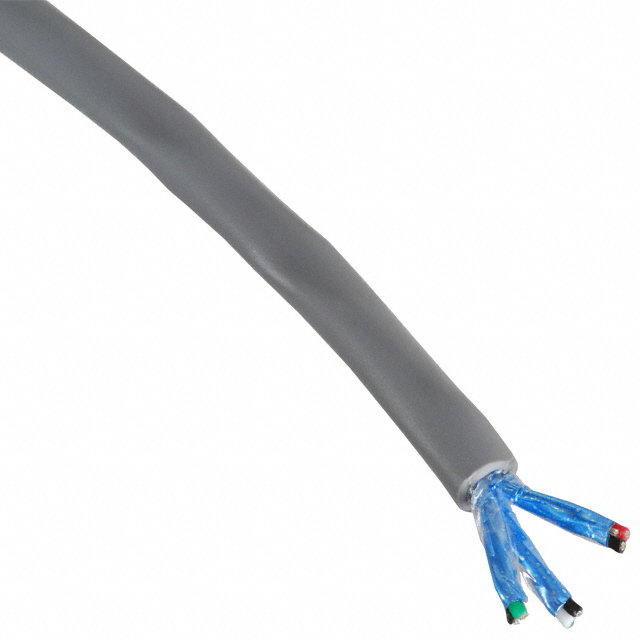

C6040 Series

Catalog

MULTI-PAIR 6CON 22AWG GRAY 1000'

Part	Shield Coverage	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Usage	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Wire Gauge	Number of Conductors	Cable Type	Features
Prysmian Group C6040A.30.10	100 %	Aluminum	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Foil	7.42 mm	0.292 in	Gray	Copper Tinned	Computer	304.8 m	1000 ft	80 °C	-20 ░C	30 AWG	7	Polyethylene (PE)	22 AWG	6	Multi-Pair	Drain Wire
Prysmian Group C6040A.41.10			Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Foil	7.42 mm	0.292 in	Gray	Copper Tinned	Computer	15.24 m 304.8 m	50 ft 1000 ft	80 °C	-20 ░C	30 AWG	7	Polyethylene (PE)	22 AWG	6	Multi-Pair	Drain Wire
Prysmian Group C6040A.41.10	100 %	Aluminum	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Foil	7.42 mm	0.292 in	Gray	Copper Tinned	Computer	304.8 m	1000 ft	80 °C	-20 ░C	30 AWG	7	Polyethylene (PE)	22 AWG	6	Multi-Pair	Drain Wire
Prysmian Group C6040A.18.10			Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Foil	7.42 mm	0.292 in	Gray	Copper Tinned	Computer	152.4 m	500 ft	80 °C	-20 ░C	30 AWG	7	Polyethylene (PE)	22 AWG	6	Multi-Pair	Drain Wire
Prysmian Group C6040A.18.10	100 %	Aluminum	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Foil	7.42 mm	0.292 in	Gray	Copper Tinned	Computer	152.4 m	500 ft	80 °C	-20 ░C	30 AWG	7	Polyethylene (PE)	22 AWG	6	Multi-Pair	Drain Wire
