100067 Series

Catalog

CABLE COAXIAL 29AWG 5'

Part	Dielectric Material	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Length [x]	Length [x]	Shield Coverage	Length	Length	VoP, Velocity of Propagation	Length	Impedance	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Shield Type	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Cable Type	Spool Size	Spool Size	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Molex - Temp Flex 1000670027	Fluorinated Ethylene-Propylene (FEP®)	Copper Silver Coated	0.037 in	0.94 mm	-65 ░C	165 °C	Copper Silver Coated	1 ' 50 ft	15.24 m 300 mm	90 % 100 %	3.05 m	10 ft	70	Enter Number of Feet in Order Quantity	50 Ohms	0.056 in	1.42 mm	Braid Foil	Blue	29 AWG	Fluorinated Ethylene-Propylene (FEP)	Coaxial
Molex - Temp Flex 1000671047	Perfluoroalkoxy (PFA)	Copper Silver Coated	0.036 in	0.91 mm	-65 ░C	150 °C	Copper Silver Coated	1 ' 50 ft 200 ft	15.24 m 300 mm	89 %	3.05 m 7.62 m 30.48 m 60.96 m	10 ft 25 ft 100 '	70	Enter Number of Feet in Order Quantity	50 Ohms	0.056 in	1.42 mm	Braid Foil	Blue	29 AWG	Fluorinated Ethylene-Propylene Tinted (FEP)	Coaxial	1524 m	5000 ft
Molex - Temp Flex 1000670032	Fluorinated Ethylene-Propylene (FEP®)	Copper Silver Coated	0.117 in	2.97 mm	-65 ░C	150 °C	Copper Silver Coated	1 ' 50 ft 200 ft	15.24 m 300 mm	85 % 100 %	3.05 m 7.62 m 30.48 m 60.96 m	10 ft 25 ft 100 '	70	Enter Number of Feet in Order Quantity	50 Ohms			Braid Foil	Blue	19 AWG	Fluorinated Ethylene-Propylene (FEP)	Coaxial			0.157 in	3.99 mm
Molex - Temp Flex 1000670031	Fluorinated Ethylene-Propylene (FEP®)	Copper Silver Coated	0.065 in	1.65 mm	-65 ░C	150 °C	Copper Silver Coated	1 ' 50 ft 200 ft	15.24 m 300 mm	90 % 100 %	3.05 m 7.62 m 30.48 m 60.96 m	10 ft 25 ft 100 '	70	Enter Number of Feet in Order Quantity	50 Ohms			Braid Foil	Blue	24 AWG	Fluorinated Ethylene-Propylene (FEP)	Coaxial	1524 m	5000 ft	0.101 in	2.57 mm

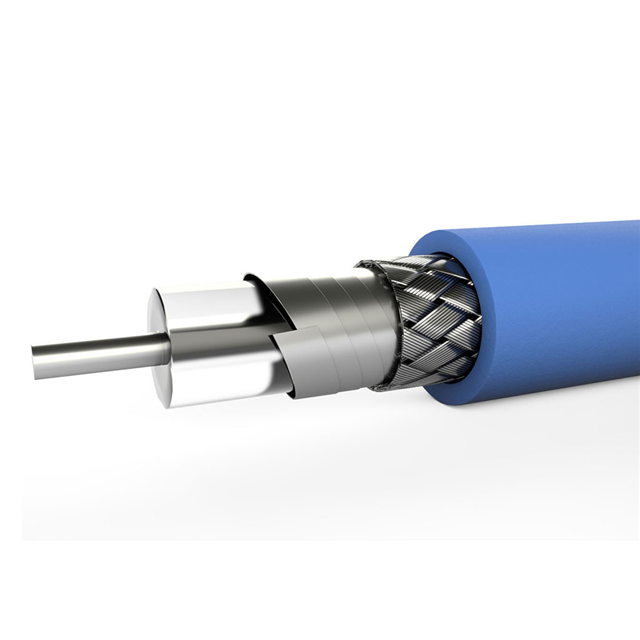

Molex - Temp Flex 1000671141	Perfluoroalkoxy (PFA)	Copper Silver Coated	0.117 in	2.97 mm	-65 ░C	165 °C	Copper Silver Coated	1 ' 50 ft 200 ft	15.24 m 300 mm		3.05 m 7.62 m 30.48 m 60.96 m	10 ft 25 ft 100 '	70	Enter Number of Feet in Order Quantity	50 Ohms			Braid Foil	Blue	19 AWG	Fluorinated Ethylene-Propylene Tinted (FEP)	Coaxial	1524 m	5000 ft	0.158 in	4.01 mm
Molex - Temp Flex 1000671086	Perfluoroalkoxy (PFA)	Copper Silver Coated	0.065 in	1.65 mm	-65 ░C	165 °C	Copper Silver Coated	1 ' 50 ft 200 ft	15.24 m 300 mm		3.05 m 7.62 m 30.48 m 60.96 m	10 ft 25 ft 100 '	70	Enter Number of Feet in Order Quantity	50 Ohms			Braid Foil		24 AWG	Fluorinated Ethylene-Propylene Tinted (FEP)	Coaxial	1524 m	5000 ft	0.101 in	2.57 mm
