HA16PRN Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

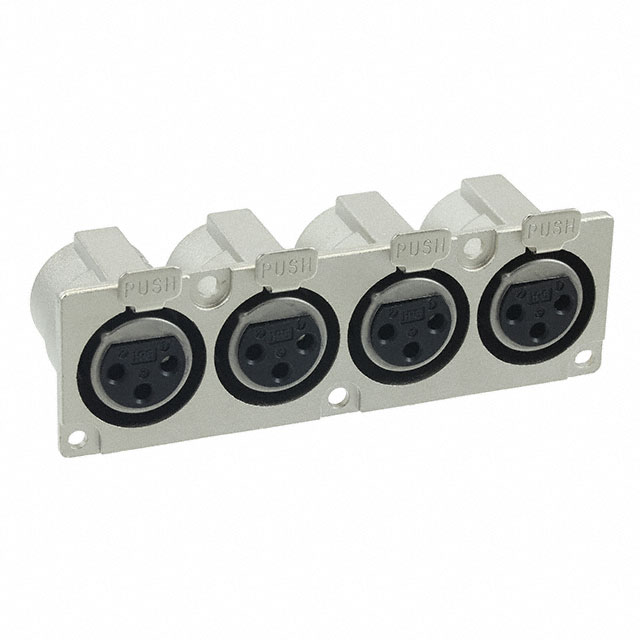

CONN PLUG FMALE 3 X 4 P SOLDER
| Part | Shell Material | Fastening Type | Material Flammability Rating | Color | Termination | Mounting Type | Number of Positions [x] | Number of Positions [y] | Contact Finish - Mating | Shielding | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Feature | Voltage Rating | Contact Material | Current Rating (Amps) | Shell Finish | Orientation | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Aluminum or Zinc Alloy | Latch Lock | UL94 V-0 | Silver | Solder | Panel Mount Through Hole | 3 | 4 | Silver | Shielded | 16 | -25 °C | 70 °C | Plug Female Sockets (Ganged) | Flange | 130 VAC 180 VDC | Copper Alloy | 3 A | Nickel | Keyed | Metal |
 Hirose Electric Co Ltd | Aluminum or Zinc Alloy | Latch Lock | UL94 V-0 | Silver | Panel Mount | 3 | 4 | Silver | Shielded | 16 | -25 °C | 70 °C | Plug Female Sockets (Ganged) | Flange | 130 VAC 180 VDC | Copper Alloy | 15 A | Nickel | Keyed | Metal |
