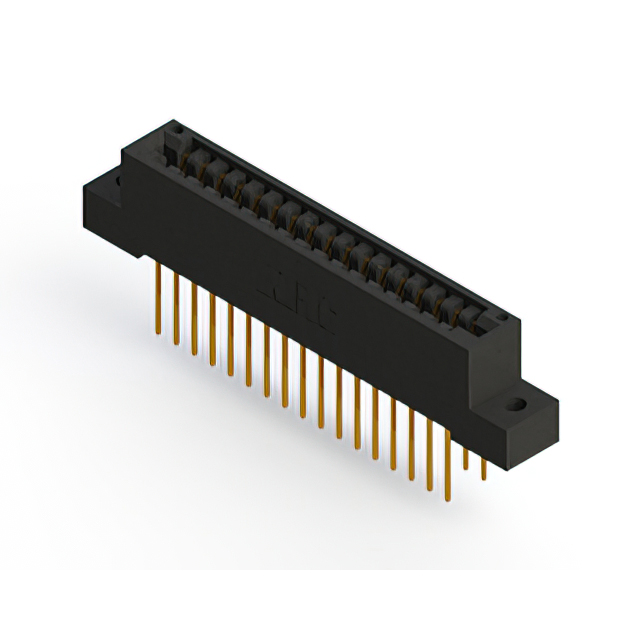

896-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 34POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Read Out | Gender | Color | Contact Finish | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Termination | Card Type | Number of Positions [custom] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination Rows | Number of Positions/Bay/Row | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Cantilever | Dual | Female | Black | Gold | 3.18 mm | 0.125 in | 17 | Solder | Non Specified - Dual Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | 125 °C | -40 C | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Cantilever | Dual | Female | Black | Gold | 3.18 mm | 0.125 in | 17 | Solder | Non Specified - Dual Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | 125 °C | -40 C | 3.25 mm | 0.128 " | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Cantilever | Dual | Female | Black | Gold | 3.18 mm | 0.125 in | 17 | Solder | Non Specified - Dual Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | 125 °C | -40 C | 3.25 mm | 0.128 " | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Cantilever | Single | Female | Black | Gold | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | 1 | 34 | 1 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Cantilever | Single | Female | Black | Gold | 3.18 mm | 0.125 in | Solder Eyelet(s) | Non Specified - Single Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 125 °C | -40 C | 1 | 34 | 1 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Cantilever | Single | Female | Black | Gold | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 125 °C | -40 C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 1 | 34 | 1 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Cantilever | Single | Female | Black | Gold | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 125 °C | -40 C | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 1 | 34 | 1 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Cantilever | Single | Female | Black | Gold | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 34 | 1 | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Cantilever | Dual | Female | Black | Gold | 3.18 mm | 0.125 in | 17 | Solder Eyelet(s) | Non Specified - Dual Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Cantilever | Dual | Female | Black | Gold | 3.18 mm | 0.125 in | 17 | Solder | Non Specified - Dual Edge | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Through Hole | 125 °C | -40 C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded |
