14-822 Series

Catalog

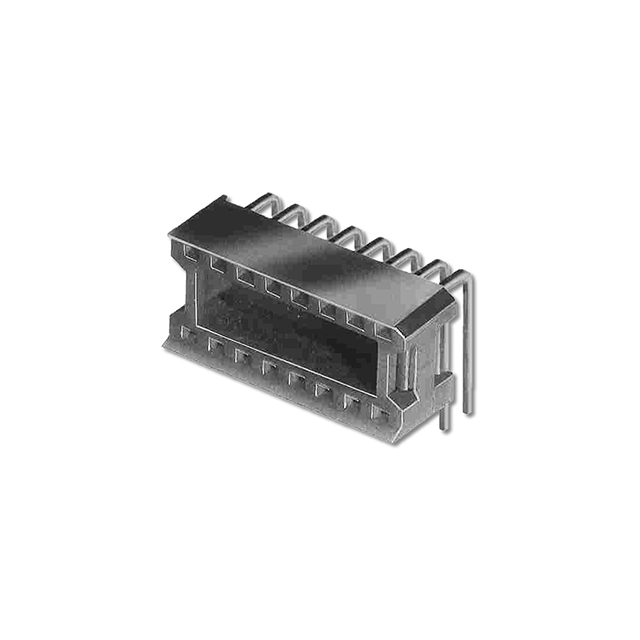

CONN IC DIP SOCKET 14POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Type	Type	Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Housing Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Features	Pitch - Post	Pitch - Post	Contact Material - Post
Aries Electronics 14-822-90C	3.56 mm	0.14 in	3 A	UL94 V-0	Tin	7.62 mm	0.3 in	DIP	Solder	0.76 Ám	30 Áin	Beryllium Copper	200 µin	5.08 µm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6 Glass Filled	Gold	-55 C	105 ░C	Brass	Closed Frame	0.1 in	2.54 mm
Aries Electronics 14-822-90TWR	3.68 mm	0.145 in	1.5 A	UL94 V-0	Tin	7.62 mm	0.3 in	DIP	Solder	5.08 µm	200 µin	Phosphor Bronze	200 µin	5.08 µm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6					Closed Frame	0.1 in	2.54 mm	Phosphor Bronze
Aries Electronics 14-822-90WR	3.68 mm	0.145 in	1.5 A	UL94 V-0	Gold	7.62 mm	0.3 in	DIP	Solder	0.25 µm	10 µin	Phosphor Bronze	10 Áin	0.25 çm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6	Gold				Closed Frame	0.1 in	2.54 mm	Phosphor Bronze
Aries Electronics 14-822-90T	3.68 mm	0.145 in	1.5 A	UL94 V-0	Tin	7.62 mm	0.3 in	DIP	Solder	5.08 µm	200 µin	Phosphor Bronze	200 µin	5.08 µm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6					Closed Frame	0.1 in	2.54 mm	Phosphor Bronze
Aries Electronics 14-822-90E	3.81 mm	0.15 in	1.5 A	UL94 V-0	Tin	7.62 mm	0.3 in	DIP	Solder	1.27 µm	50 µin	Phosphor Bronze	50 µin	1.27 µm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6					Closed Frame	0.1 in	2.54 mm	Phosphor Bronze
Aries Electronics 14-822-90	3.68 mm	0.145 in	1.5 A	UL94 V-0	Gold	7.62 mm	0.3 in	DIP	Solder	0.25 µm	10 µin	Phosphor Bronze	10 Áin	0.25 çm	0.1 "	2.54 mm	14	Polyamide (PA46) Nylon 4/6	Gold				Closed Frame	0.1 in	2.54 mm	Phosphor Bronze
