AM1G Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 5V 1W

Part	Applications	Supplier Device Package	Features	Voltage - Output 1	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Mounting Type	Efficiency	Voltage - Isolation	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Output 2	Standard Number	Current - Output (Max) [Min]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]

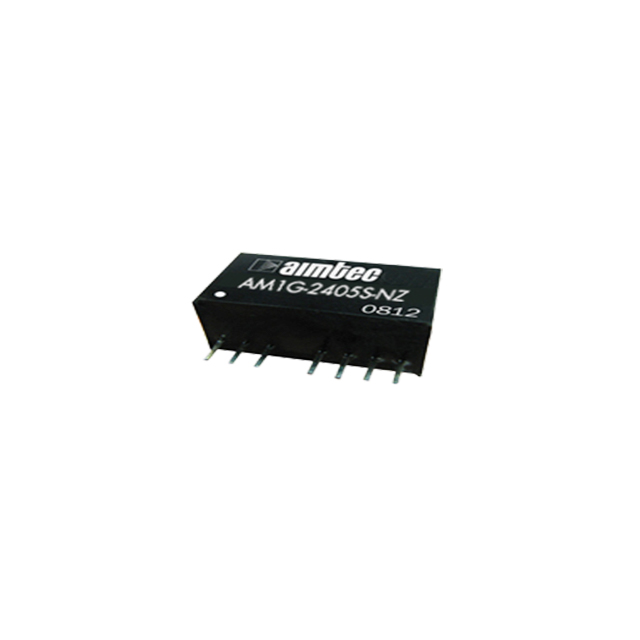

aimtec AM1G-2405S-NZ	ITE (Commercial)	8-SIP	Remote On/Off	5 V	8-SIP Module 7 Leads	-40 °C	100 °C	18 V	1	9.5 mm	0.37 in	0.49 "	12.5 mm	22 mm	0.87 in	200 mA	36 V	Isolated Module	Through Hole	77 %	1.5 kV
aimtec AM1G-1209SH30-NZ	ITE (Commercial)		Remote On/Off	9 V	8-SIP Module	-40 C	100 °C	9 V	1	9.5 mm	0.37 in	0.49 "	12.5 mm	22 mm	0.87 in	111 mA	18 V	Isolated Module	Through Hole	79 %	3000 V	1 mW	cULus cURus
aimtec AM1G-0507DZ	ITE (Commercial)		Remote On/Off		8-SIP Module	-40 C	85 °C	4.5 V	2	9.2 mm	0.36 in	0.44 in	11.1 mm	21.9 mm	0.86 "	69 mA	9 V	Isolated Module	Through Hole	69 %	1000 V		CE cURus EN IEC UL	69 mA	-7.2 V	7.2 V	-7.2 V	62368-1
aimtec AM1G-2424SH30-NZ	ITE (Commercial)		Remote On/Off	24 V	8-SIP Module	-40 C	100 °C	18 V	1	9.5 mm	0.37 in	0.47 "	12 mm	22 mm	0.87 in	42 mA	36 V	Isolated Module	Through Hole	77 %	3000 V		cULus cURus
aimtec AM1G-0515DZ	ITE (Commercial)		Remote On/Off		8-SIP Module	-40 C	85 °C	4.5 V	2	9.2 mm	0.36 in	0.44 in	11.1 mm	21.9 mm	0.86 "	33 mA	9 V	Isolated Module	Through Hole	70 %	1000 V		CE cURus EN IEC UL				-15 V	62368-1	33 mA	15 V	-15 V
aimtec AM1G-1205S-NZ	ITE (Commercial)		Remote On/Off	5 V	8-SIP Module	-40 C	100 °C	9 V	1	9.5 mm	0.37 in	0.47 "	12 mm	22 mm	0.87 in	200 mA	18 V	Isolated Module	Through Hole	77 %	1.5 kV		cULus cURus
aimtec AM1G-0512SH30-NZ	ITE (Commercial)			12 V	8-SIP Module 7 Leads	-40 °C	100 °C	4.5 V	1	9.5 mm	0.37 in	0.49 "	12.5 mm	22 mm	0.87 in	83 mA	9 V	Isolated Module	Through Hole	76 %	3000 V	996 mW
aimtec AM1G-0505SH30-NZ	ITE (Commercial)			5 V	8-SIP Module 7 Leads	-40 °C	100 °C	4.5 V	1	9.5 mm	0.37 in	0.49 "	12.5 mm	22 mm	0.87 in	200 mA	9 V	Isolated Module	Through Hole	72 %	3000 V
aimtec AM1G-2405SZ	ITE (Commercial)			5 V	8-SIP Module 7 Leads	-40 C	85 °C	18 V	1	9.2 mm	0.36 in	0.44 in	11.2 mm	21.9 mm	0.86 "	200 mA	36 V	Isolated Module	Through Hole	72 %	1000 V		CE cURus
aimtec AM1G-1205SZ	ITE (Commercial)		Remote On/Off	5 V	8-SIP Module	-40 C	85 °C	9 V	1	9.2 mm	0.36 in	0.44 in	11.2 mm	21.9 mm	0.86 "	200 mA	18 V	Isolated Module	Through Hole	72 %	1000 V		CE cURus UL
