TPA Series

Trisil" for telecom equipment protection

Catalog

Trisil" for telecom equipment protection

Part	Package / Case	Mounting Type	Voltage - Off State	Capacitance	Voltage - Breakover	Current - Hold (Ih)	Number of Elements	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (8/20µs)	Supplier Device Package

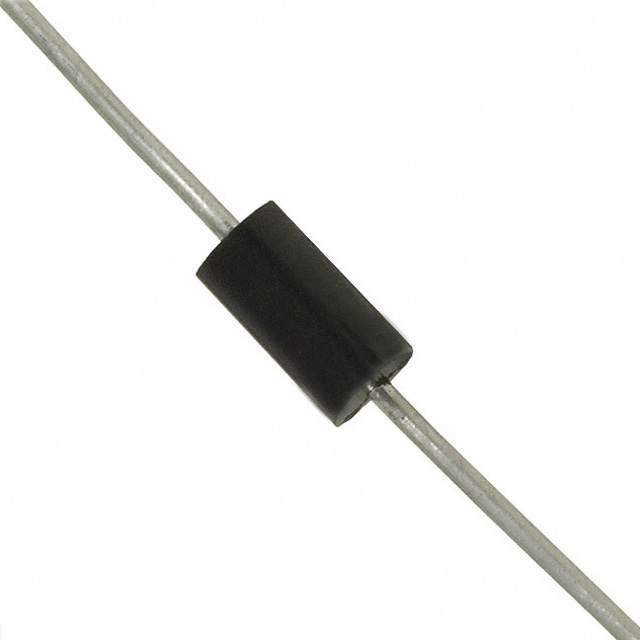

STMicroelectronics TPA220RL	Axial DO-15 DO-204AC	Through Hole	220 V	25 pF	293 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)
STMicroelectronics TPA100	Axial DO-15 DO-204AC	Through Hole	100 V	35 pF	133 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)
STMicroelectronics TPA270RL	Axial DO-15 DO-204AC	Through Hole	270 V	25 pF	360 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)
STMicroelectronics TPA180	Axial DO-15 DO-204AC	Through Hole	180 V	25 pF	240 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)
STMicroelectronics TPA62	Axial DO-15 DO-204AC	Through Hole	62 V	40 pF	82 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)
STMicroelectronics TPA220	Axial DO-15 DO-204AC	Through Hole	220 V	25 pF	293 V	150 mA	1	50 A	150 A	DO-204AC (DO-15)

Catalog

Trisil" for telecom equipment protection

Description

These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines. They are available in SMA, SMB and DO-15 packages.
