FH12 Series

Catalog

CONN FFC FPC TOP 45POS 0.5MM SMD

...

Part	Actuator Color	Current Rating (Amps)	Mating Cycles	Housing Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector/Contact Type	Cable End Type	Termination	Flat Flex Type	Voltage Rating	Contact Material	Mounting Type	Height Above Board	Height Above Board	Locking Feature	FFC, FCB Thickness	Number of Positions	Housing Material	Actuator Material	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Features	Number of Positions [custom]

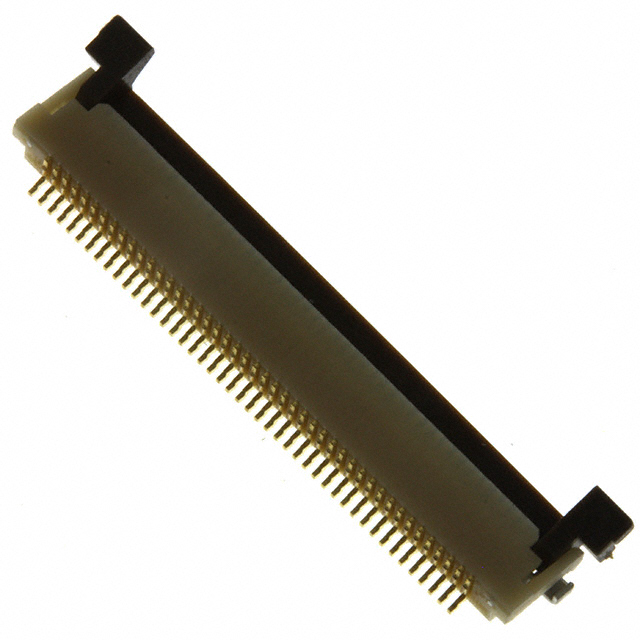

Hirose Electric Co Ltd FH12A-45S-0.5SH(1)(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Top	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm	45	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm

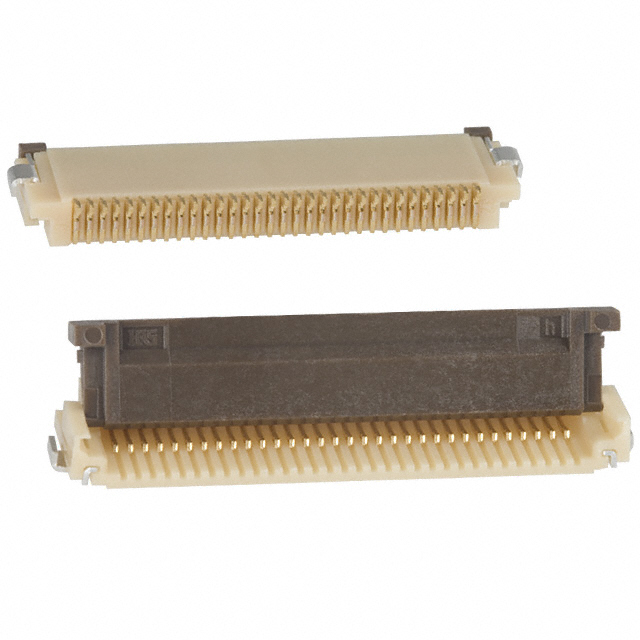

Hirose Electric Co Ltd FH12-32S-0.5SH(1)(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Bottom	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm		Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm

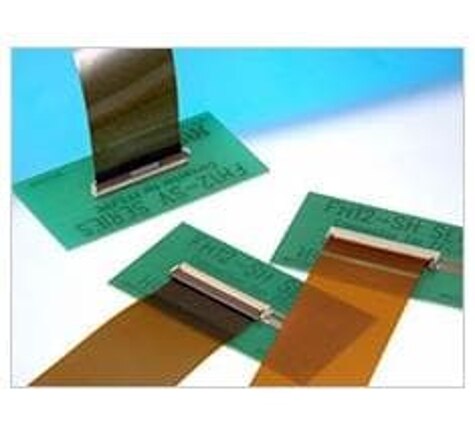

Hirose Electric Co Ltd FH12-50S-0.5SVA(98)					UL94 V-0	85 °C	-40 C	Gold	Contacts Vertical - 1 Sided	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Surface Mount			Flip Lock	0.3 mm	50	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm	0.142 in	3.6 mm	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric Co Ltd FH12-50(24)SA-1SH(55)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Bottom	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm	50	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.039 in	1 mm			Solder Retention Zero Insertion Force (ZIF)

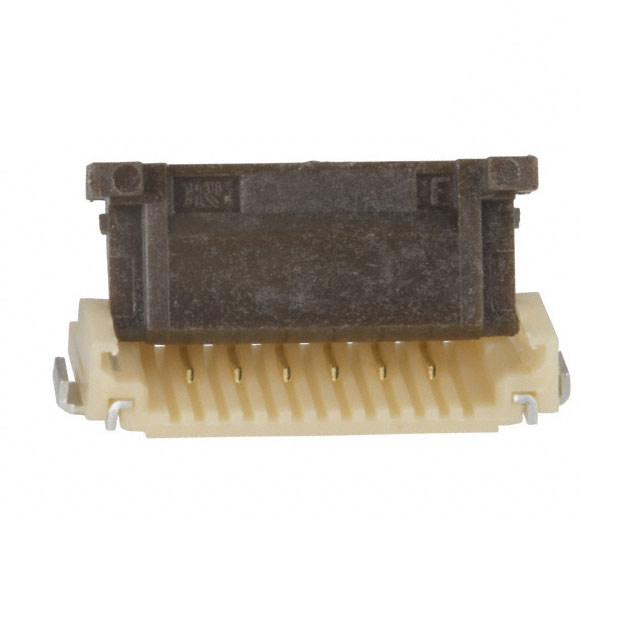

Hirose Electric Co Ltd FH12-6S-1SH(55)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Bottom	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm	6	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.039 in	1 mm			Solder Retention Zero Insertion Force (ZIF)
Hirose Electric Co Ltd FH12-17S-0.5SH(1)(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Bottom	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm		Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm
Hirose Electric Co Ltd FH12-40S-0.5SVA(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Vertical - 1 Sided	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Surface Mount			Flip Lock	0.3 mm	40	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm	0.142 in	3.6 mm	Solder Retention Zero Insertion Force (ZIF)

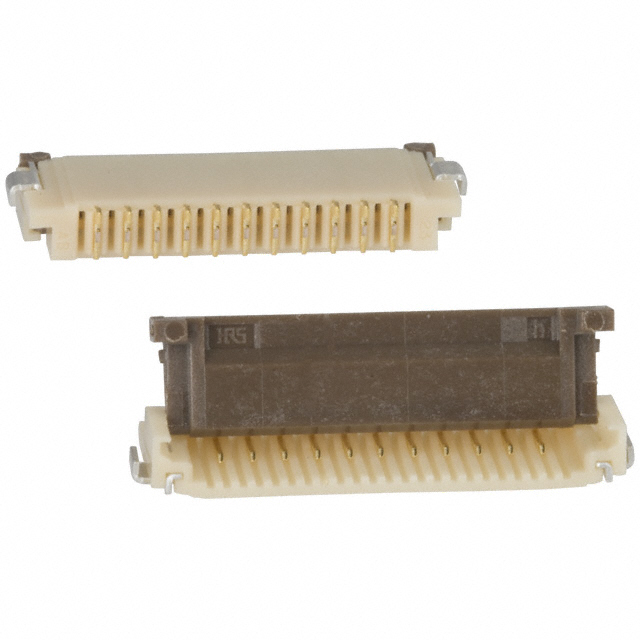

Hirose Electric Co Ltd FH12-11S-1SH(1)(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Bottom	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm	11	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.039 in	1 mm			Solder Retention Zero Insertion Force (ZIF)
Hirose Electric Co Ltd FH12-6S-1SVA(54)					UL94 V-0				Contacts Vertical - 1 Sided		Solder	FFC FPC			Surface Mount			Flip Lock		6			0.039 in	1 mm	0.142 in	3.6 mm	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric Co Ltd FH12A-34S-0.5SH(1)(98)	Brown	0.5 A	20	Beige	UL94 V-0	85 °C	-40 C	Gold	Contacts Top	Straight	Solder	FFC FPC	50 V	Phosphor Bronze	Right Angle Surface Mount	2 mm	0.079 in	Flip Lock	0.3 mm		Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	0.02 "	0.5 mm			Solder Retention Zero Insertion Force (ZIF)	34
