08-2503 Series
Manufacturer: Aries Electronics
Beta
⌘K

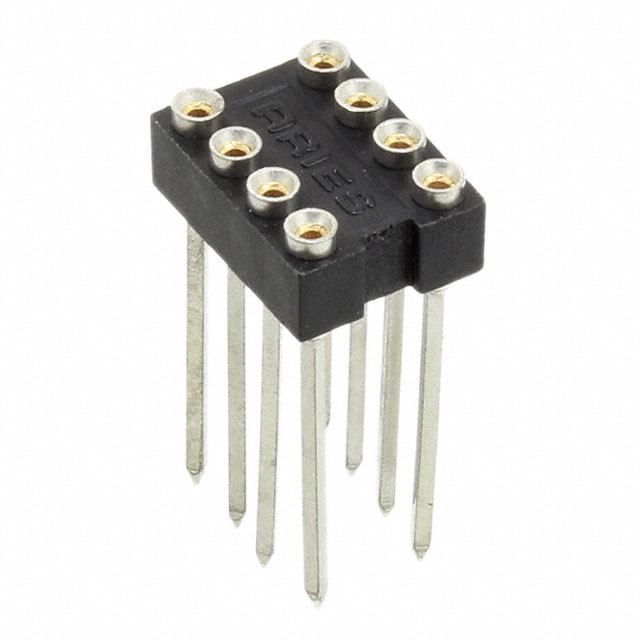

CONN IC DIP SOCKET 8POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Termination | Contact Material - Mating | Contact Material - Post | Housing Material | Features | Contact Finish - Post | Contact Finish - Mating | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 0.5 in | 12.7 mm | 3 A | UL94 V-0 | Through Hole | 200 µin | 5.08 µm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Wire Wrap | Beryllium Copper | Phosphor Bronze | Polyamide (PA46) Nylon 4/6 Glass Filled | Closed Frame | Tin | Gold | 8 | 2 | 4 | -55 C | 105 ░C | DIP | 5.08 mm | 0.25 µm | 10 µin |
