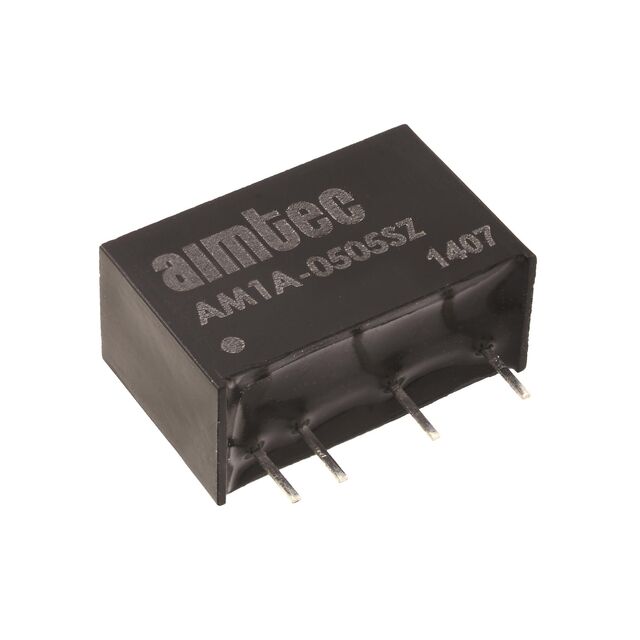

AM1A Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Approval Agency | Type | Voltage - Isolation | Voltage - Output 1 | Efficiency | Standard Number | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | CE cURus EN IEC UL | Isolated Module | 1.5 kV | 5 V | 76 % | 62368-1 | 1 | 200 mA | 75 V | 6-SIP Module | 0.43 in | 0.67 " | 7.6 mm | 0.3 " | 11 mm | 17 mm | 85 °C | -40 C | 36 V | ITE (Commercial) | Through Hole |
