HRMP-H.FL Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

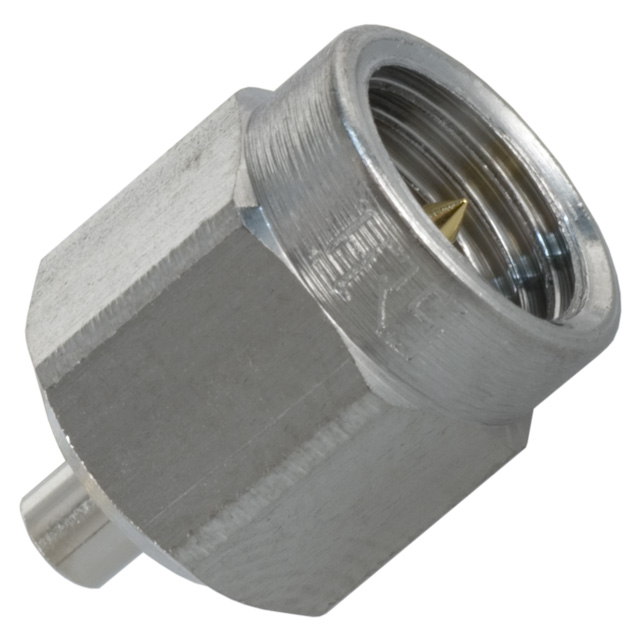

CONN ADAPT SMA PLUG TO H.FL JACK
| Part | Center Contact Material | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Conversion Type | Convert To (Adapter End) | Adapter Series | Style | Convert From (Adapter End) | Center Contact Plating | Fastening Type | Mounting Type | Center Gender | Impedance | Adapter Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | Stainless Steel | Nickel; Passivated | 85 °C | -40 C | 500 | Polytetrafluoroethylene (PTFE) | Between Series | H.FL Jack Male Pin | SMA to H.FL | Straight | Male Pin SMA Plug | Gold | Snap-On Threaded | Free Hanging (In-Line) | Male to Male | 50 Ohms | Plug to Jack | 3 GHz |
Hirose Electric Co Ltd | Brass | Stainless Steel | Nickel; Passivated | 85 °C | -40 C | 500 | Polytetrafluoroethylene (PTFE) | Between Series | H.FL Jack Male Pin | SMA to H.FL | Straight | Male Pin SMA Plug | Gold | Snap-On Threaded | Free Hanging (In-Line) | Male to Male | 50 Ohms | Plug to Jack | 3 GHz |
