R150 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

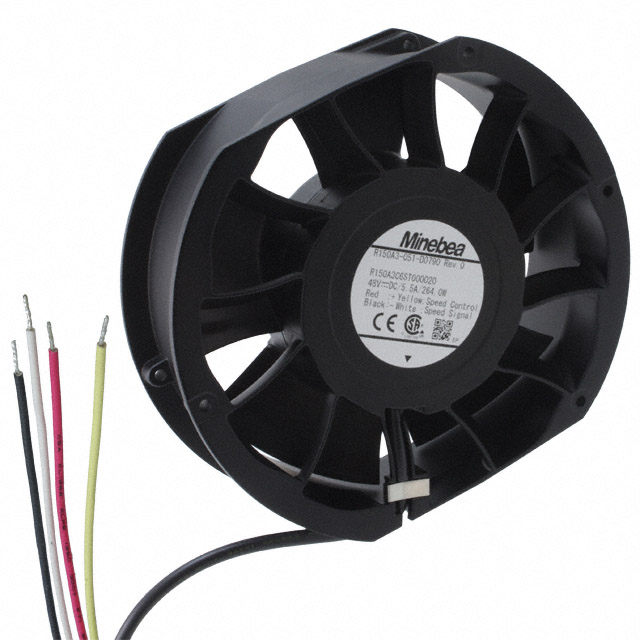

DC FANS DC AXIAL FAN, 172X150X51MM, 48VDC, 473CFM, 63DBA, 6500RPM, 798PA, BALL, TACH/PWM
| Part | Air Flow | Air Flow | Material - Frame | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Static Pressure | Static Pressure | Features | Fan Type | RPM | Bearing Type | Weight | Weight | Power (Watts) | Voltage - Rated | Width [y] | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 473 CFM | 13.24 m³/min | Aluminum | Plastic | 70000 Hrs | 36 VDC | 60 V | 70 °C | -30 ░C | -30 °C | 70 °C | 4 Wire Leads | 150 mm | Rectangular/Rounded | 172.7 mm | 797.1 Pa | 3.2 in H2O | PWM Control Speed Sensor (Tach) | Tubeaxial | 6500 RPM | Ball | 800 g | 1.8 lbs | 180 W | 48 VDC | 50.8 mm | 73 dB(A) |
