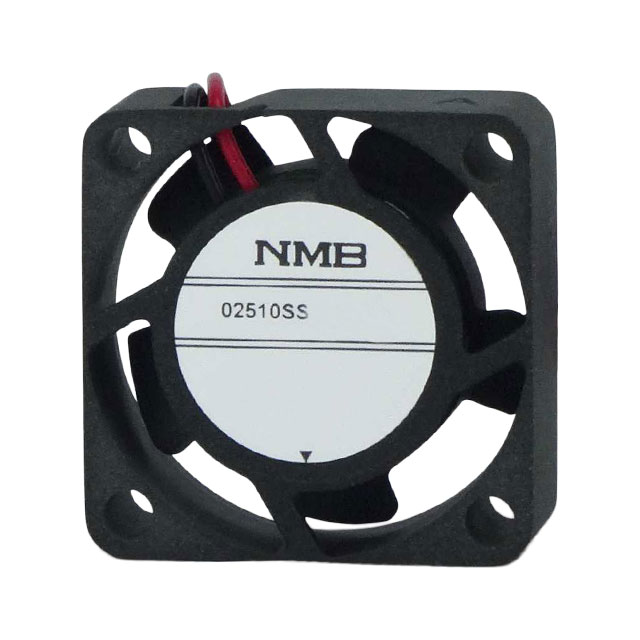

02510SS Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 25 MM, 10 MM, SLEEVE BEARING, 1.94 CFM

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Bearing Type	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Fan Type	Features	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	RPM	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight
NMB TECHNOLOGIES 02510SS-12M-AT-00	30000 Hrs	Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	3 Wire Leads	70 °C	-10 °C	12 VDC	Tubeaxial	Auto Restart Speed Sensor (Tach)

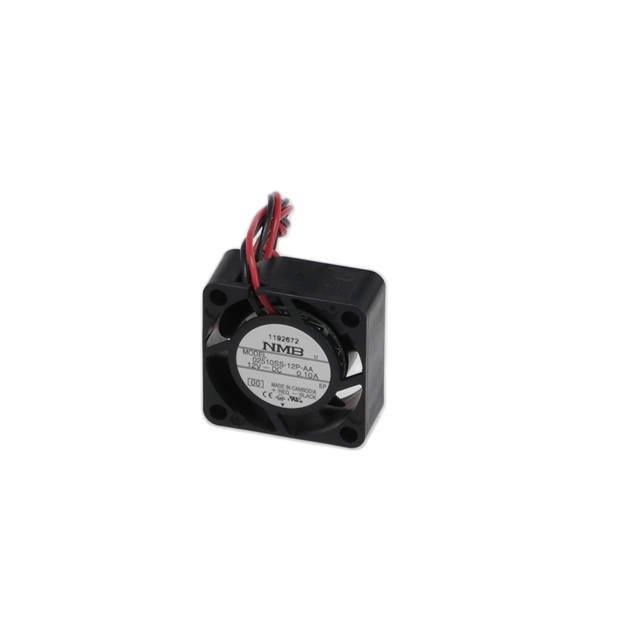

NMB TECHNOLOGIES 02510SS-12P-AA-00	30000 Hrs	Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	2 Wire Leads	70 °C	-10 °C	12 VDC	Tubeaxial	Auto Restart	70 mA	13.8 VDC	6 VDC	13000 RPM	0.076 m³/min	2.7 CFM	28.5 dB	0.27 in H2O	67.3 Pa	840 mW

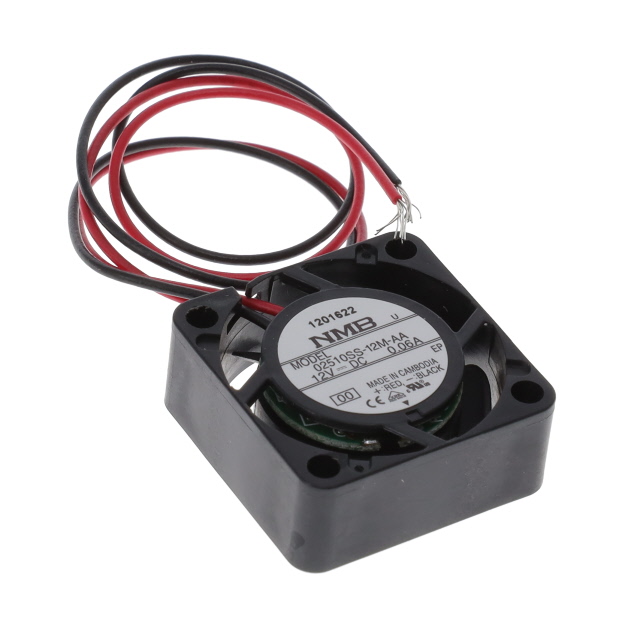

NMB TECHNOLOGIES 02510SS-12M-AA-00		Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	2 Wire Leads			12 VDC	Tubeaxial	Auto Restart
NMB TECHNOLOGIES 02510SS-05P-AT-00		Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	3 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	Speed Sensor (Tach)	0.18 A	5.5 V	4.5 V	13000 RPM	0.073 mł/min	2.6 CFM	28.5 dB	0.27 in H2O	67.3 Pa	0.9 W	8.16 g	0.018 lb
NMB TECHNOLOGIES 02510SS-12P-AT-00		Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	3 Wire Leads	70 °C	-10 °C	12 VDC	Tubeaxial	Speed Sensor (Tach)	70 mA	13.8 VDC	6 VDC	13000 RPM	0.073 mł/min	2.6 CFM	28.5 dB	0.27 in H2O	67.3 Pa	840 mW	8.16 g	0.018 lb

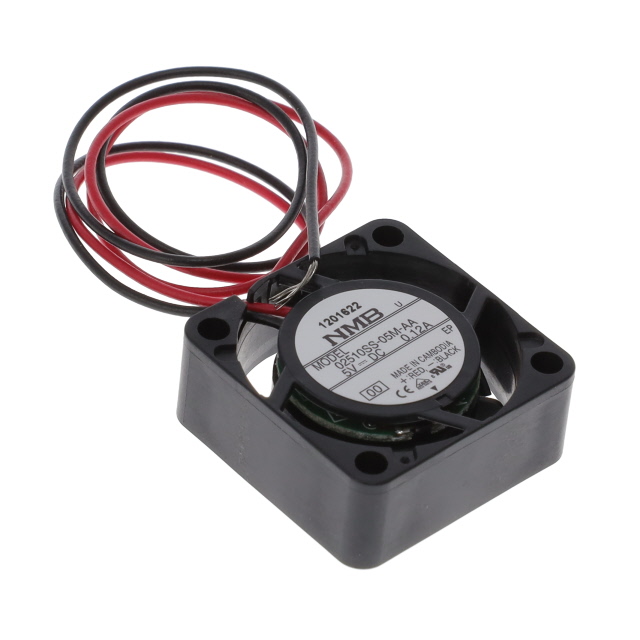

NMB TECHNOLOGIES 02510SS-05M-AA-00		Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	2 Wire Leads			5 V	Tubeaxial	Auto Restart
NMB TECHNOLOGIES 02510SS-05M-AT-00	30000 Hrs	Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	3 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	Auto Restart Speed Sensor (Tach)

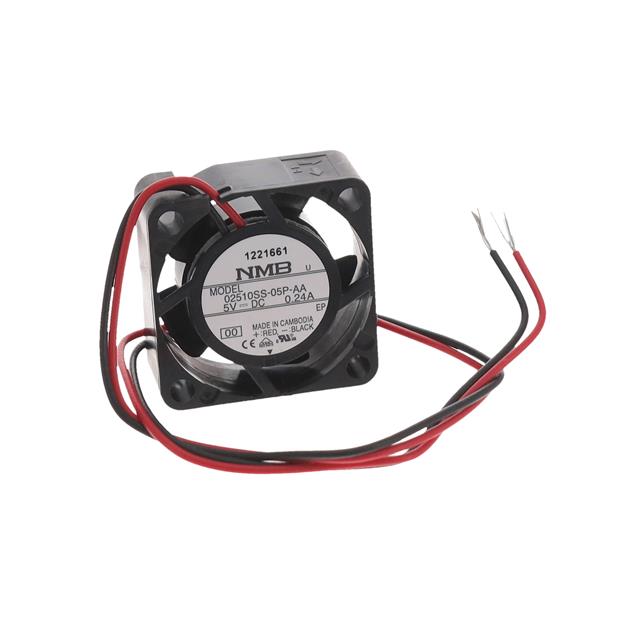

NMB TECHNOLOGIES 02510SS-05P-AA-00	30000 Hrs	Plastic	Plastic	Sleeve	10 mm	25 mm	25 mm	2 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	Auto Restart	0.18 A	5.5 V	4.5 V	13000 RPM	0.076 m³/min	2.7 CFM	28.5 dB	0.27 in H2O	67.3 Pa	0.9 W
