TPS25810A-Q1 Series

Automotive USB Type-C™ Rev 1.2 DFP controller and power switch with load detection

Catalog

Automotive USB Type-C™ Rev 1.2 DFP controller and power switch with load detection

Part	Supplied Contents	Utilized IC / Part	Type	Function	Secondary Attributes	Applications	Qualification	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Grade

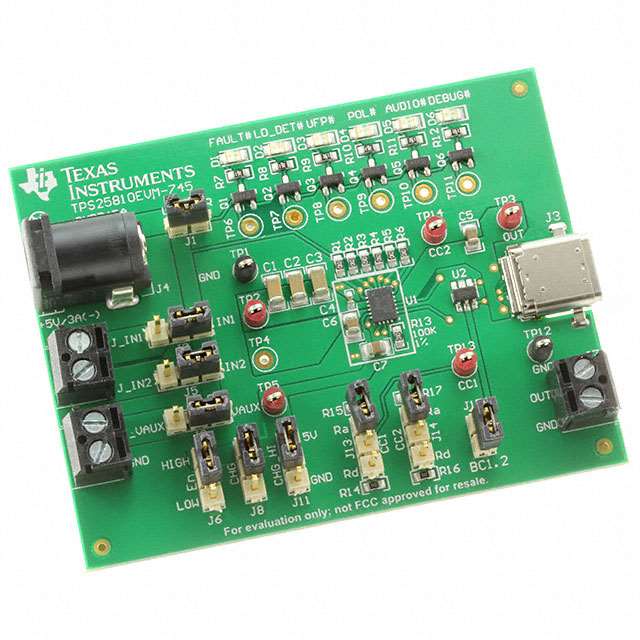

Texas Instruments TPS25810EVM-745	Board(s)	TPS25810	Interface	USB Type-C®	On-Board LEDs
Texas Instruments TPS25810TWRVCRQ1						USB	AEC-Q100	Surface Mount	4.5 V	6.5 V	20-WFQFN Exposed Pad	Automotive
Texas Instruments TPS25810ATWRVCRQ1						USB	AEC-Q100	Surface Mount	4.5 V	6.5 V	20-WFQFN Exposed Pad	Automotive
Texas Instruments TPS25810RVCT						USB		Surface Mount	4.5 V	6.5 V	20-WFQFN Exposed Pad

Catalog

Automotive USB Type-C™ Rev 1.2 DFP controller and power switch with load detection

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade T: –40°C to 105°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BUSB Type-C Rev. 1.2 Compliant DFP ControllerConnector Attach or Detach DetectionSTD, 1.5-A, or 3-A Capability Advertisement on CCSuper-Speed Polarity DeterminationVBUSApplication and DischargeVCONNApplication to Electronically Marked CableAudio and Debug Accessory Identification0.7-µA (typ) IDDQWhen Port Is UnattachedThree Input Supply OptionsIN1: USB Charging SupplyIN2: VCONNSupplyAUX: Device Power SupplyPower Wake Supports Low Power in System Hibernate (S4) and OFF (S5) Power States34-mΩ (typ) High-Side MOSFETFixed 3.4-A ILIM(±7.1%)Digital Cable Compensation, IOUT≥ 1.95 APackage: 20-Pin WQFN (3 mm × 4 mm)(1)(1)CC pins are IEC-61000-4-2 ratedQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade T: –40°C to 105°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BUSB Type-C Rev. 1.2 Compliant DFP ControllerConnector Attach or Detach DetectionSTD, 1.5-A, or 3-A Capability Advertisement on CCSuper-Speed Polarity DeterminationVBUSApplication and DischargeVCONNApplication to Electronically Marked CableAudio and Debug Accessory Identification0.7-µA (typ) IDDQWhen Port Is UnattachedThree Input Supply OptionsIN1: USB Charging SupplyIN2: VCONNSupplyAUX: Device Power SupplyPower Wake Supports Low Power in System Hibernate (S4) and OFF (S5) Power States34-mΩ (typ) High-Side MOSFETFixed 3.4-A ILIM(±7.1%)Digital Cable Compensation, IOUT≥ 1.95 APackage: 20-Pin WQFN (3 mm × 4 mm)(1)(1)CC pins are IEC-61000-4-2 rated

Description

The TPS25810A-Q1 device is a USB Type-C downstream-facing port (DFP) controller with an integrated 3-A rated USB power switch. The device monitors the Type-C configuration channel (CC) lines to determine when a USB device is attached. If an upstream-facing port (UFP) device is attached, it applies power to VBUSand communicate the selectable VBUScurrent-sourcing capability to the UFP via the pass-through CC line. If the UFP is attached using an electronically marked cable, it also applies VCONNpower to the cable CC pin. The TPS25810A-Q1 can identify and report when Type-C audio or debug accessories are attached. The TPS25810A-Q1 device draws less than 0.7 µA (typical) from the AUX pin when no USB load is connected. Additional system power saving is achievable in the S4 and S5 system power states by using theUFPoutput to disable the high-power 5-V supply when no UFP is attached. In this mode, the device is capable of running from an auxiliary supply (AUX), which can be a lower-voltage supply (3.3 V), typically powering the system microcontroller in low-power states (S4 and S5). The TPS25810A-Q1 device integrates a 34-mΩ power switch with a fixed 3.4-A current limit independent of the Type-C current advertisement level. TheFAULToutput signals when the switch is in an overcurrent or overtemperature condition. TheCSoutput is used for implementing digital cable compensation for load currents greater than 1.95 A. Cable compensation, also known as line drop compensation, is a means of offsetting voltage droop from the USB power supply to the UFP load. The TPS25810A-Q1 device is a USB Type-C downstream-facing port (DFP) controller with an integrated 3-A rated USB power switch. The device monitors the Type-C configuration channel (CC) lines to determine when a USB device is attached. If an upstream-facing port (UFP) device is attached, it applies power to VBUSand communicate the selectable VBUScurrent-sourcing capability to the UFP via the pass-through CC line. If the UFP is attached using an electronically marked cable, it also applies VCONNpower to the cable CC pin. The TPS25810A-Q1 can identify and report when Type-C audio or debug accessories are attached. The TPS25810A-Q1 device draws less than 0.7 µA (typical) from the AUX pin when no USB load is connected. Additional system power saving is achievable in the S4 and S5 system power states by using theUFPoutput to disable the high-power 5-V supply when no UFP is attached. In this mode, the device is capable of running from an auxiliary supply (AUX), which can be a lower-voltage supply (3.3 V), typically powering the system microcontroller in low-power states (S4 and S5). The TPS25810A-Q1 device integrates a 34-mΩ power switch with a fixed 3.4-A current limit independent of the Type-C current advertisement level. TheFAULToutput signals when the switch is in an overcurrent or overtemperature condition. TheCSoutput is used for implementing digital cable compensation for load currents greater than 1.95 A. Cable compensation, also known as line drop compensation, is a means of offsetting voltage droop from the USB power supply to the UFP load.
