MPT Series

DIN Rail Terminal Blocks Mini Feed-through 3.5mm Width,26-14AWG

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks Mini Feed-through 3.5mm Width,26-14AWG

Catalog

DIN Rail Terminal Blocks Mini Feed-through 3.5mm Width,26-14AWG

Part	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Termination Style	Color	Type	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Voltage - IEC	Voltage - UL	Current - UL	Screw Thread	Housing Material	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Max]	Voltage	Pitch	Pitch	Wire Termination	Current	Positions Per Level	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Housing Color
Phoenix Contact 3248110	2	1.5 mm²	0.14 mm²	1	Push In Spring	Green Yellow	Ground Earth	3.5 mm	26 AWG	14 AWG
Phoenix Contact 3248126	2	4 mm²	0.14 mm²	1	Push In Spring	Blue	Feed Through	5.2 mm	26 AWG	12 AWG	24 A	500 V	300 V	20 A
Phoenix Contact 3248130	2	4 mm²	0.14 mm²	1	Push In Spring	Green Yellow	Ground Earth	5.2 mm	26 AWG	12 AWG

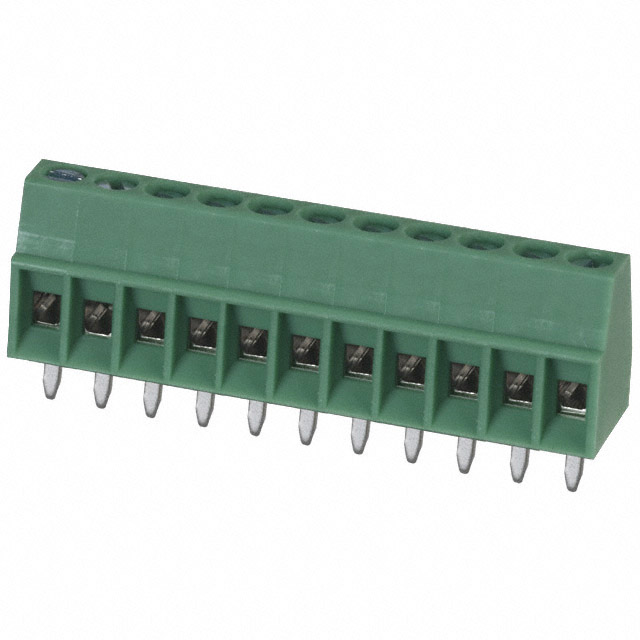

Phoenix Contact 1725740				1		Green									M1.6	Polyamide (PA) Nylon	0.12 Nm	1 Lb-In	1.3 Lb-In	0.15 Nm	125 V	0.1 "	2.54 mm	Screw	6 A	11	Horizontal with Board	19.5 AWG	30 AWG	Through Hole
Phoenix Contact 3248116	2	1.5 mm²	0.14 mm²	1	Plug Receptacles Push In Spring		Plug Connection	3.5 mm	26 AWG	14 AWG	17.5 A	500 V	300 V																	DIN Rail	Gray
