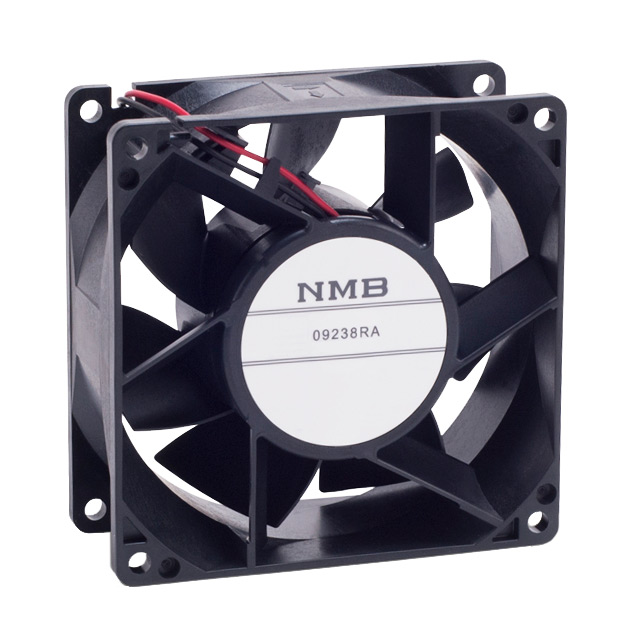

09238RA Series

Catalog

FAN AXIAL 92X38.4MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage - Rated	Ingress Protection	Termination	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Features	Width [y]	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Noise	Static Pressure	Static Pressure	RPM
NMB TECHNOLOGIES 09238RA-12L-EL-00	100000 Hrs	Plastic	Plastic	12 VDC	IP69K - Dust Tight High Temp Water Jets Waterproof	3 Wire Leads	Ball	92 mm	92 mm	Auto Restart Locked Rotor Sensor	38.4 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 09238RA-24P-GA-00	100000 Hrs	Plastic	Plastic	24 VDC	IP69K - Dust Tight High Temp Water Jets Waterproof	2 Wire Leads	Ball	92 mm	92 mm	Auto Restart	38.4 mm	Tubeaxial	70 °C	-10 °C	3.96 mł/min	141.3 CFM	920 mA	27.6 VDC	14	22.08 W	61 dB(A)	258 Pa	1.04 in H2O	6700 RPM
NMB TECHNOLOGIES 09238RA-24N-ELD-0	100000 Hrs	Plastic	Plastic	24 VDC		3 Wire Leads	Ball	92 mm	92 mm	Auto Restart Locked Rotor Sensor	38 mm	Tubeaxial	70 °C	-10 °C	3.95 m³/min	141.2 CFM	0.71 A	27.6 VDC	14	17.04 W	59 dB(A)	255 Pa	1.02 in H2O	6200 RPM
NMB TECHNOLOGIES 09238RA-12N-EA-00				12 VDC		2 Wire Leads	Ball	92 mm	92 mm		38 mm	Tubeaxial
NMB TECHNOLOGIES 09238RA-24L-EAD-0				24 VDC		2 Wire Leads	Ball	92 mm	92 mm	Auto Restart	38 mm	Tubeaxial	70 °C	-10 °C	2.91 mł/min	103.8 CFM				9.6 W	52.5 dB(A)	142 Pa	0.57 in H2O	5000 RPM
NMB TECHNOLOGIES 09238RA-12L-EA-00	100000 Hrs	Plastic	Plastic	12 VDC	IP69K - Dust Tight High Temp Water Jets Waterproof	2 Wire Leads	Ball	92 mm	92 mm	Auto Restart	38.4 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 09238RA-24N-EA-00				24 VDC		2 Wire Leads	Ball	92 mm	92 mm		38 mm	Tubeaxial
NMB TECHNOLOGIES 09238RA-12N-ET-00	100000 Hrs	Plastic	Plastic	12 VDC	IP69K - Dust Tight High Temp Water Jets Waterproof	3 Wire Leads	Ball	92 mm	92 mm	Auto Restart Speed Sensor (Tach)	38.4 mm	Tubeaxial	70 °C	-10 °C
