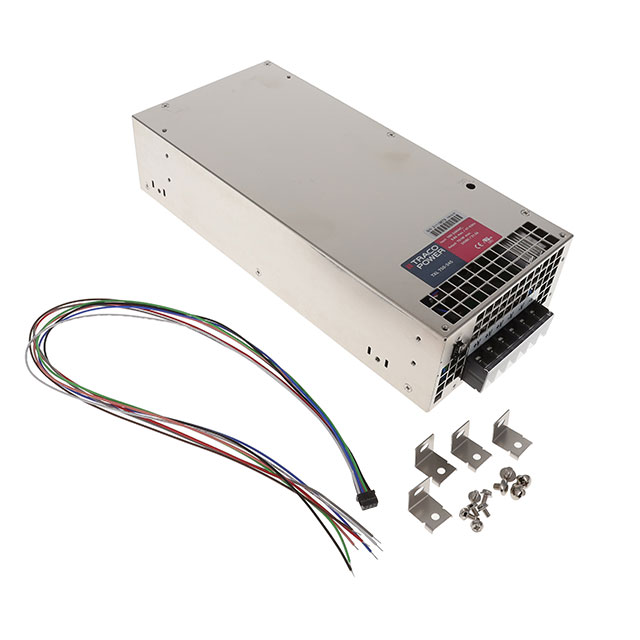

TXL 750 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 24A 750W
| Part | Number of Outputs | Approval Agency | Power (Watts) | Type | Features | Current - Output 1 | Voltage - Output 1 | Mounting Type | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1 | CE cURus | 751 W | Enclosed | Adjustable Output Remote On/Off Remote Sense Universal Input | 31.3 A | 24 V | Chassis Mount | 3000 V | 264 VAC 375 VDC | 90 VAC 127 VDC | ITE (Commercial) | 4.92 in | 2.48 " | 125 mm | 63 mm | 275 mm | 10.83 " | 84 % | 70 °C | -20 °C |
