11938KA Series

Catalog

FAN AXIAL 119X38.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Voltage - Rated	Power (Watts)	Approval Agency	Termination	Weight	Weight	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Width [y]	Bearing Type	Fan Type	Noise	Features	RPM
NMB TECHNOLOGIES 11938KA-24L-NT-00	10 VDC	27.6 VDC	108 CFM	3.02 m³/min	Plastic	0.31 A	100000 Hrs	Plastic	24 VDC	7.44 W	CE CSA UL VDE	3 Wire Leads	0.573 lb	259.91 g	Square	119 mm	119 mm	70 °C	-10 °C	0.27 in H2O	67.3 Pa	38.4 mm	Ball	Tubeaxial	42.5 dB	Speed Sensor (Tach)	2950 RPM
NMB TECHNOLOGIES 11938KA-24M-NT-00	10 VDC	27.6 VDC	118 CFM	3.3 m³/min	Plastic	0.35 A	100000 Hrs	Plastic	24 VDC	8.4 W	CE CSA UL VDE	3 Wire Leads	0.573 lb	259.91 g	Square	119 mm	119 mm	70 °C	-10 °C	0.33 in H2O	82.2 Pa	38.4 mm	Ball	Tubeaxial	46.5 dB	Speed Sensor (Tach)	3200 RPM
NMB TECHNOLOGIES 11938KA-24K-EL-00	10 VDC	27.6 VDC	97 CFM	2.72 m³/min	Plastic	0.21 A	100000 Hrs	Plastic	24 VDC	5.04 W		3 Wire Leads			Square	119 mm	119 mm	70 °C	-10 °C	0.22 in H2O	54.8 Pa	38.4 mm	Ball	Tubeaxial	41 dB	Auto Restart Locked Rotor Sensor	2650 RPM

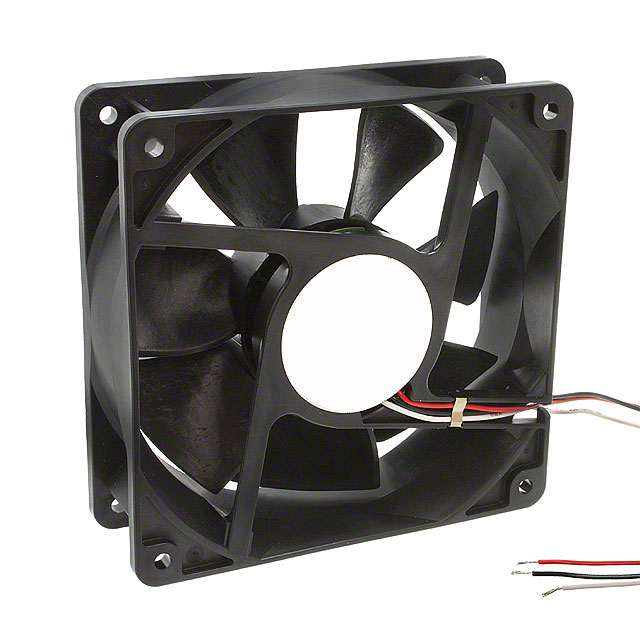

NMB TECHNOLOGIES 4715KL-04W-B59-E00	9.5 VDC	12.6 VDC	129.9 CFM	3.64 m³/min	Plastic		50000 Hrs	Plastic	12 VDC	12 W	CE CSA UL VDE	3 Wire Leads	0.573 lb	259.91 g	Square	119 mm	119 mm	40 °C	-10 °C	0.44 in H2O	109.6 Pa	38.4 mm	Ball	Tubeaxial	50 dB(A)	Locked Rotor Sensor	3600 RPM
