TC500A Series

Dual Slope ADC

Catalog

Dual Slope ADC

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of Channels	Package / Case	Package / Case	Package / Case	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of Bits	Power (Watts)	Mounting Type	Supplier Device Package	Package / Case [x]	Package / Case [y]	Voltage - Supply, Digital	Voltage - Supply, Analog

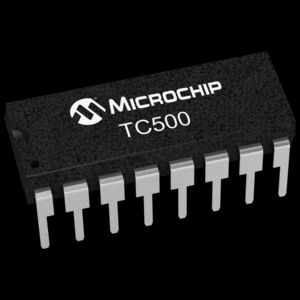

Microchip Technology TC500CPE	-4.5 V	7.5 V	1	0.3 in	16-DIP	7.62 mm	-4.5 V	7.5 V	16	10 mW	Through Hole	16-PDIP
Microchip Technology TC500ACPE	-4.5 V	7.5 V	1	0.3 in	16-DIP	7.62 mm	-4.5 V	7.5 V	17	10 mW	Through Hole	16-PDIP
Microchip Technology TC500COE713	-4.5 V	7.5 V	1		16-SOIC		-4.5 V	7.5 V	16	10 mW	Surface Mount	16-SOIC	0.295 in	7.5 mm
Microchip Technology TC500ACOE	-4.5 V	7.5 V	1		16-SOIC		-4.5 V	7.5 V	17	10 mW	Surface Mount	16-SOIC	0.295 in	7.5 mm
Microchip Technology TC500ACOE713			1		16-SOIC				17	10 mW	Surface Mount	16-SOIC	0.295 in	7.5 mm	5 V	5 V

Catalog

Dual Slope ADC

Key Features

• * Precision (up to 17 Bits) A/D Converter Front End

• * 3-Pin Control Interface to Microprocessor

• * Flexible: Ability to Trade-off Conversion Speed for Resolution

• * Automatic Input Voltage Polarity Detection

• * Low Power Dissipation: 10mW

• * Wide Analog Input Range: ±4.2V

• * Directly Accepts Bipolar and Differential Input Signals

Description

The TC500A is a precision analog front end dual slope A/D converter having a maximum resolution of 17 bits plus sign. The device contains the integrator, zero crossing comparator and processor interface logic. The TC500A is identical to the TC500, except it has improved linearity allowing it to operate to a maximum resolution of 17 bits. The TC500A offers superior 50Hz/60Hz noise rejection, low power operation, minimum I/O connections, and low input bias currents.
