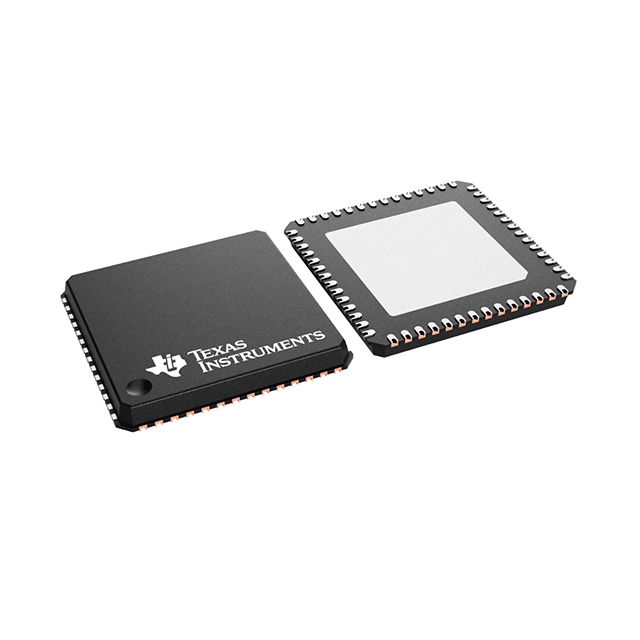

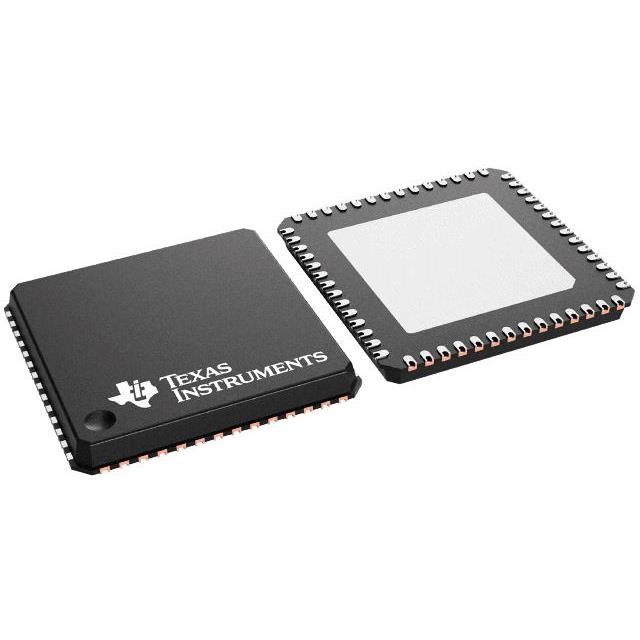

TPS6594-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 2.8-V TO 5.5-V PMIC WITH FIVE BUCK REGULATORS AND FOUR LOW-DROPOUT REGULATORS
| Part | Grade | Qualification | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Number of Outputs | Topology | w/Sequencer | Frequency - Switching | Voltage/Current - Output 2 | Voltage/Current - Output 2 [Max] | Voltage/Current - Output 2 [Min] | Voltage/Current - Output 1 [Min] | Voltage/Current - Output 1 [Max] | Voltage/Current - Output 1 | w/Supervisor | Voltage/Current - Output 3 [Min] | Voltage/Current - Output 3 [Max] | Voltage/Current - Output 3 | w/LED Driver | Current - Supply [x] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 5.5 V | 3 V | 19 mA | |||||||||||||||||
Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 C | 56-VQFNP (8x8) | 5.5 V | 3 V | ||||||||||||||||||
 Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 17 mA | |||||||||||||||||||
 Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 17 mA | |||||||||||||||||||
Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 C | 56-VQFNP (8x8) | 5.5 V | 3 V | 9 | Linear (LDO) (4) Step-Down (Buck) Synchronous (5) | 2.2 MHz 4.4 MHz | 3.5 A | 3.34 V | 0.3 V | 0.3 V | 3.34 V | 3.5 A | 0.3 V | 3.34 V | 3.5 A | ||||||
Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 5.5 V | 3 V | 9 | Linear (LDO) (4) Step-Down (Buck) Synchronous (5) | 2.2 MHz 4.4 MHz | 3.5 A | 3.34 V | 0.3 V | 0.3 V | 3.34 V | 3.5 A | 0.3 V | 3.34 V | 3.5 A | ||||||
Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 2 µA | |||||||||||||||||||
Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 5.5 V | 3 V | 19 mA | |||||||||||||||||
Texas Instruments | Automotive | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 °C | 56-VQFNP (8x8) | 78 µA | Processor | |||||||||||||||||||
 Texas Instruments | Automotive | AEC-Q100 | Surface Mount Wettable Flank | 56-VFQFN Exposed Pad | 125 °C | -40 C | 56-VQFNP (8x8) | 5.5 V | 3 V | 9 | Linear (LDO) (4) Step-Down (Buck) Synchronous (5) | 2.2 MHz 4.4 MHz | 3.5 A | 3.34 V | 0.3 V | 0.3 V | 3.34 V | 3.5 A | 0.3 V | 3.34 V | 3.5 A |
