AD5325 Series

Catalog

IC DAC 12BIT V-OUT 10MSOP

Part	Architecture	Settling Time	Package / Case	Package / Case [x]	Package / Case [x]	Number of D/A Converters	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Data Interface	Number of Bits	INL/DNL (LSB)	Reference Type	Mounting Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Output Type	Number of DAC's	Utilized IC / Part	DAC Type	Supplied Contents
Analog Devices AD5325BRM-REEL	String DAC	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	4	10-MSOP	-40 °C	105 ░C	2.5 V	5.5 V	I2C	12 bits	0.2 LSB 2 LSB	External	Surface Mount	5.5 V	2.5 V	Voltage - Buffered
Analog Devices AD5325BRM-REEL7	String DAC	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	4	10-MSOP	-40 °C	105 ░C	2.5 V	5.5 V	I2C	12 bits	0.2 LSB 2 LSB	External	Surface Mount	5.5 V	2.5 V	Voltage - Buffered
Analog Devices AD5325ARM	String DAC	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	4	10-MSOP	-40 °C	105 ░C	2.5 V	5.5 V	I2C	12 bits	0.2 LSB 2 LSB	External	Surface Mount	5.5 V	2.5 V	Voltage - Buffered

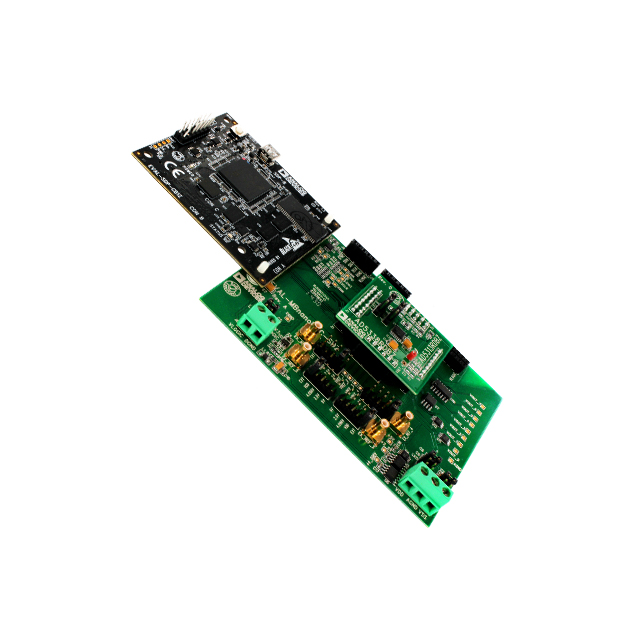

Analog Devices EVAL-AD5325DBZ		8 µs										I2C Serial	12 bits							4	AD5325	Voltage	Board(s)
Analog Devices AD5325ARM-REEL7	String DAC	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	4	10-MSOP	-40 °C	105 ░C	2.5 V	5.5 V	I2C	12 bits	0.2 LSB 2 LSB	External	Surface Mount	5.5 V	2.5 V	Voltage - Buffered
