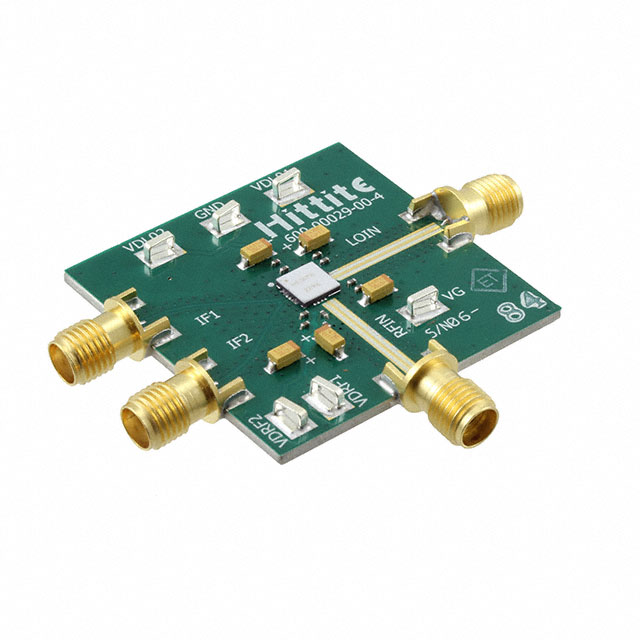

GaAs MMIC I/Q Downconverter, 37 - 44 GHz
Key Features
• Conversion Gain: 13 dB
• Excellent Image Rejection: 25 dBc
• Output IP3: +12 dBm
• High Output IP3: +27 dBm
• 16 Lead 5x5 mm Ceramic Package: 25 mm²
Description
AI
The HMC6147ALC5A is a compact GaAs MMIC I/Q downconverter in a leadless RoHS compliant SMT package. This device provides a small signal conversion gain of 13 dB with 25 dBc of sideband rejection. The HMC6147ALC5A utilizes a low noise amplifier to drive the I/Q mixer where the LO is driven by a X2 multiplier. IF1 and IF2 mixer inputs are provided and an external 90° hybrid is needed to select the required sideband.The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC 6147ALC5A is a much smaller alternative to hybrid style single sideband converter assemblies and it eliminates the need for wire bonding by allowing the use of surface mount manufacturing techniques.ApplicationsPoint-to-Point & Point-to-Multi-Point RadioMilitary Radar, EW & ELINTSatellite CommunicationsSensors
