D.FL75 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

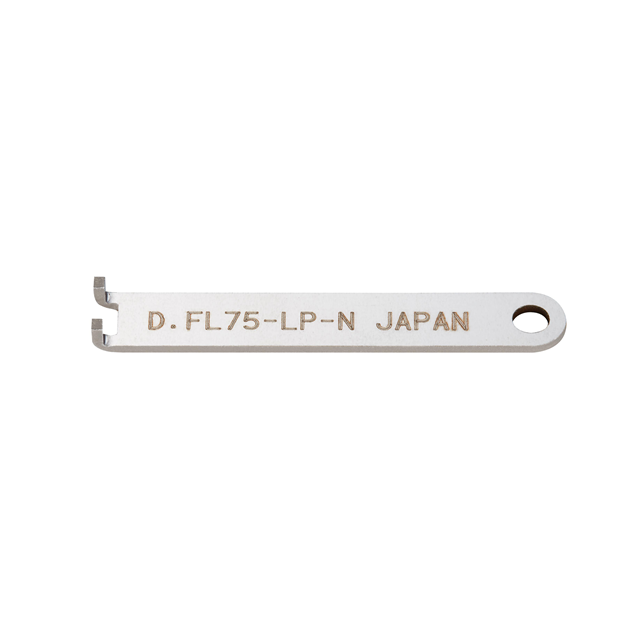

TOOL EXTRACT D.FL75
| Part | Tool Type | For Use With/Related Products | Dielectric Material | Body Material | Body Finish | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shield Termination | Housing Color | Fastening Type | Number of Ports | Connector Type | Contact Termination | Center Contact Material | Impedance | Connector Style | Frequency - Max [Max] | Contact Finish | Height Above Board | Height Above Board | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Mated Stacking Heights | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Extraction Tool | Coaxial RF Connectors | |||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Gold | 20 | Gold | -40 C | 105 ░C | Surface Mount | Solder | Gold | Snap-On | 1 | Receptacle Male Pin | Solder | Phosphor Bronze | 75 Ohms | D.FL | 12 GHz | |||||||||||||
 Hirose Electric Co Ltd | Surface Mount | Header Center Strip Contacts | Gold | 8.91 mm | 0.351 " | 2 | 0.25 Ám | 10 Áin | 10 | Board Guide | 10 mm 12 mm | 0.8 mm | 0.031 in |
