G40F1C-P Series
Manufacturer: ODU
Beta
⌘K

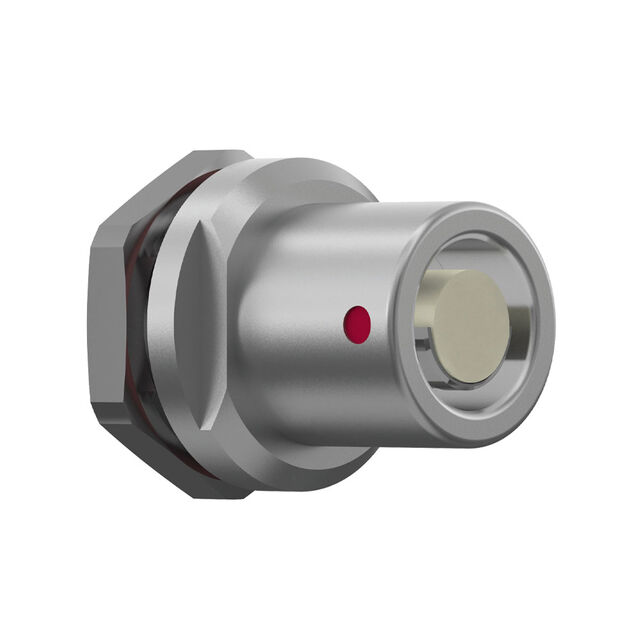

ODU MINI-SNAP RECEPT, STY 4, SZ.
| Part | Shell Material | Applications | Primary Material | Material Flammability Rating | Current Rating (Amps) | Shell Finish | Shell Size - Insert [custom] | Shielding | Ingress Protection | Number of Positions | Fastening Type | Color | Mounting Feature | Connector Type | Contact Finish - Mating | Mounting Type | Contact Material | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Orientation [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 7.5 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 4 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | ||
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 4 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 7 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount Through Hole | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | Solder | |
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 6 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 5 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount Through Hole | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 366 V | 1 | Solder | |
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 4 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 7 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | ||
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 4 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 9 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount Through Hole | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | Solder | |
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 7.5 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 4 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | ||
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 4 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 9 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 | ||
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 7.5 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 5 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 200 V | 1 | ||
Brass | Industrial Medical Military Testing Equipment & Measurement | Metal | UL94 V-0 | 4 A | Chrome over Nickel | 0 | Unshielded | IP68 - Dust Tight Waterproof | 7 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gold | Panel Mount | Brass | Polyetheretherketone (PEEK) | 120 °C | -40 C | 300 VDC | 1 |
