STK30 Series
Manufacturer: STMicroelectronics
Catalog

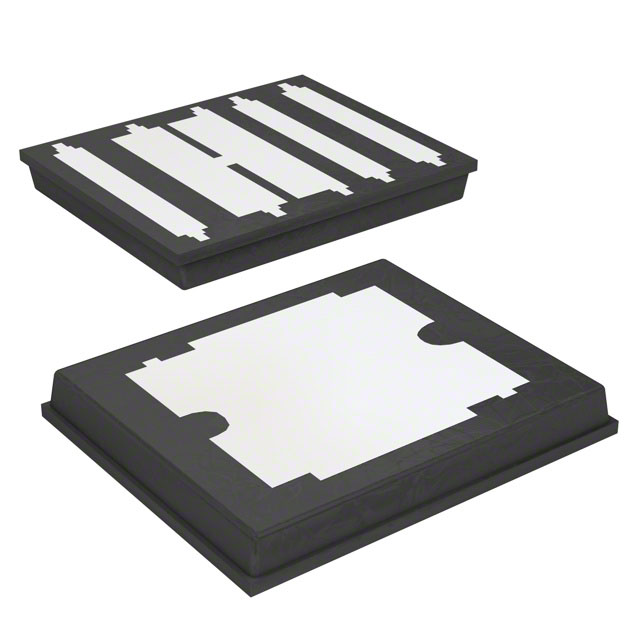

MOSFET N-CH 25V 30A POLARPAK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Technology | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Supplier Device Package | FET Type | Vgs(th) (Max) @ Id | Power Dissipation (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 150 °C | -55 °C | Surface Mount | PolarPak® | MOSFET (Metal Oxide) | 4.5 V 10 V | 20 V | PolarPak® | N-Channel | 2.5 V | 5.2 W | 2290 pF | 18 nC | 2.9 mOhm | 30 A | 25 V |
