08020SS Series

Catalog

DC FANS TUBEAXIAL FAN, 80X80X20MM, 24VDC, 39.9CFM, RIB MOUNT, SLEEVE BEARING, LEAD WIRES

Part	Noise	Voltage - Rated	Material - Blade	Static Pressure	Static Pressure	Features	Fan Type	Width [y]	Termination	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Power (Watts)	RPM	Weight	Weight
NMB TECHNOLOGIES 08020SS-24M-AA-00	37.5 dB(A)	24 VDC	Plastic	44.1 Pa	0.177 in H2O	Auto Restart	Tubeaxial	20 mm	2 Wire Leads	Plastic	12	27.6 VDC	0.09 A	70 °C	-10 °C	1.13 mł/min	40.2 CFM	40 °C 50000 Hrs	80 mm	80 mm	Sleeve	2.16 W	3700 RPM

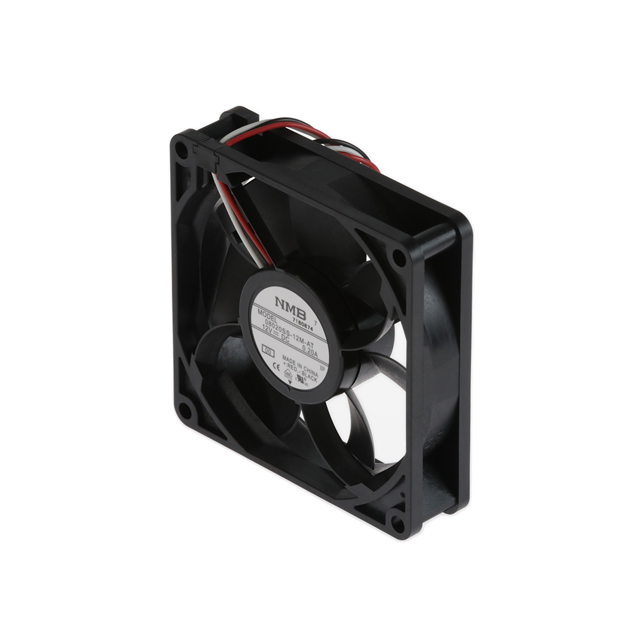

NMB TECHNOLOGIES 08020SS-12M-AT-00	37.5 dB(A)	12 VDC	Plastic	52.3 Pa	0.21 in H2O	Auto Restart Speed Sensor (Tach)	Tubeaxial	20 mm	3 Wire Leads	Plastic	6 VDC	13.8 VDC	150 mA	70 °C	-10 °C	1.12 m³/min	40 CFM	40 °C 50000 Hrs	80 mm	80 mm	Sleeve	1.8 W	3700 RPM	0.167 lb	75.75 g
NMB TECHNOLOGIES 08020SS-24M-AA-00	37.5 dB(A)	24 VDC		44.1 Pa	0.177 in H2O	Auto Restart	Tubeaxial	20 mm	2 Wire Leads					70 °C	-10 °C	1.13 mł/min	40.2 CFM		80 mm	80 mm	Sleeve	2.16 W	3700 RPM
