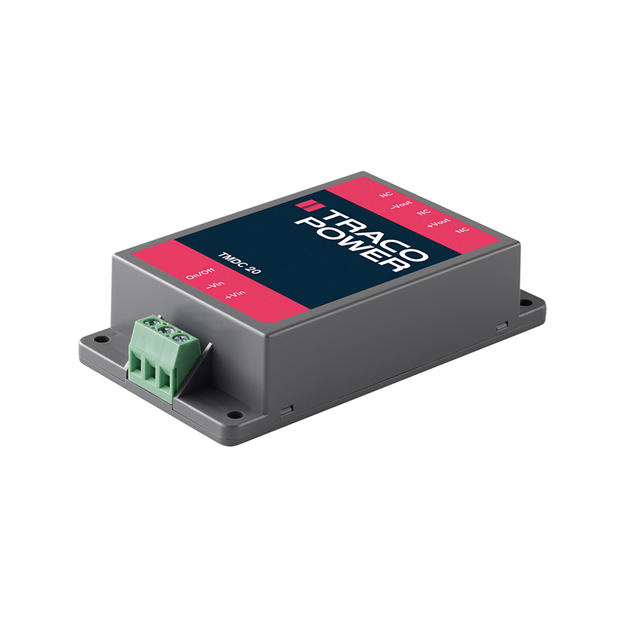

TMDC 20 Series
Manufacturer: Traco Power
Beta
⌘K
MODULE DC-DC 24VIN 1-OUT 24V 0.835A 20W 8-PIN
| Part | Power (Watts) | Voltage - Isolation | Type | Applications | Voltage - Input (Min) [Min] | Approval Agency | Mounting Type | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Efficiency | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 20 W | 2500 V | Enclosed | ITE (Commercial) | 9 V | CB CE cURus | Chassis Mount | 835 mA | 54.1 mm | 0.92 in | 96 mm | 2.13 in | 3.78 in | 23.4 mm | 90 °C | -40 °C | 24 V | 36 V | 91 % | 1 |
Traco Power | 20 W | 2500 V | Enclosed | ITE (Commercial) | 9 V | CB CE cURus | Chassis Mount | 4 A | 54.1 mm | 0.92 in | 96 mm | 2.13 in | 3.78 in | 23.4 mm | 90 °C | -40 °C | 5.1 V | 36 V | 90 % | 1 |
Traco Power | 20 W | 2500 V | Enclosed | ITE (Commercial) | 9 V | CB CE cURus | Chassis Mount | 1.67 A | 54.1 mm | 0.92 in | 96 mm | 2.13 in | 3.78 in | 23.4 mm | 90 °C | -40 °C | 12 V | 36 V | 91 % | 1 |
