TN5015H-6I Series
Manufacturer: STMicroelectronics
Beta
⌘K
HIGH TEMPERATURE SCR 600V REPETITIVE PEAK OFF-STATE VOLTAGE 15MA GATE-TRIGGER CURRENT
| Part | SCR Type | Voltage - On State (Vtm) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Current - Off State (Max) [Max] [custom] | Package / Case | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Gate Trigger (Vgt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (RMS)) (Max) [Max] | Current - On State (It (AV)) (Max) | Voltage - Off State | Current - Hold (Ih) (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

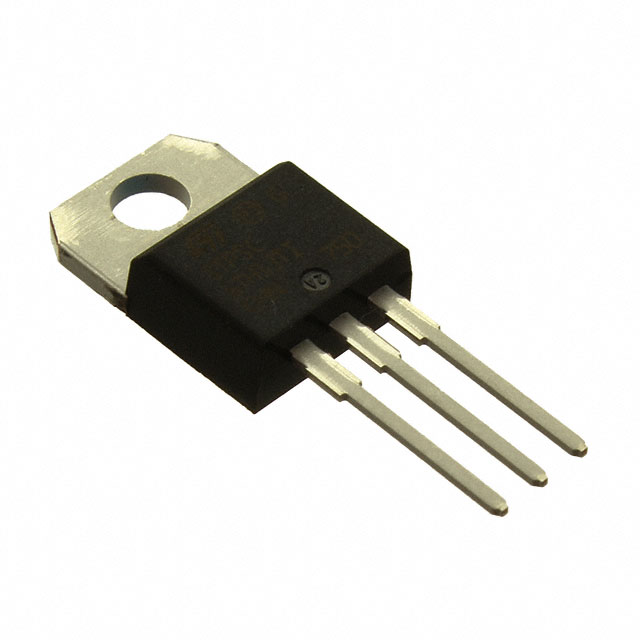

 STMicroelectronics | Standard Recovery | 1.65 V | 15 mA | 10 µA | TO-220-3 | TO-220AB Insulated | -40 °C | 150 °C | 1.3 V | 450 A 493 A | 50 A | 30 A | 600 V | 60 mA | Through Hole |
