ADP1714 Series
Manufacturer: Analog Devices
Beta
⌘K
IC REG LDO 0.9V 0.3A TSOT23-5
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Output (Min/Fixed) | Mounting Type | Control Features | Protection Features | Number of Regulators | Voltage Dropout (Max) [Max] | Current - Output | PSRR | Current - Quiescent (Iq) | Output Type | Voltage - Input (Max) [Max] | Current - Supply (Max) [Max] | Output Configuration | Channels per IC | Supplied Contents | Regulator Type | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 0.9 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 0.8 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 1.3 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 0.75 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||

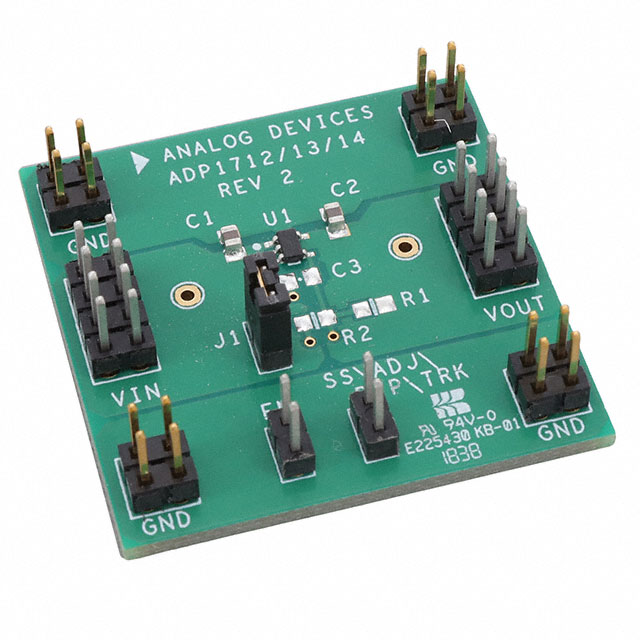

 Analog Devices | 300 mA | 1 - Single | Board(s) | Positive Fixed | ADP1714 | 2.5 V | 5.5 V | 3.3 V | Fully Populated | |||||||||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 1.05 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 1.8 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive | ||||||||
Analog Devices | -40 °C | 125 ¯C | SOT-23-5 Thin TSOT-23-5 | 0.95 V | Surface Mount | Enable Tracking | Over Current Over Temperature Under Voltage Lockout (UVLO) | 1 | 0.23 V | 300 mA | 65 dB | 70 µA | 1.81 mOhm | 5.5 V | 420 µA | Positive |
