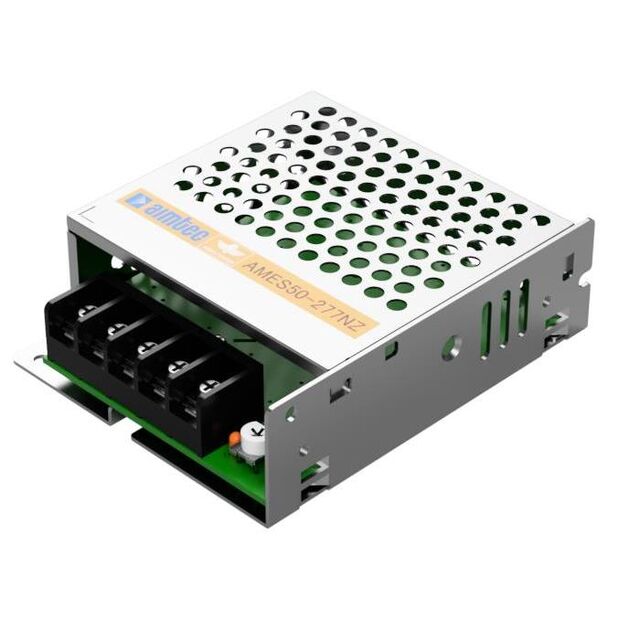

AMES50 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 15V 51W
| Part | Voltage - Output 1 | Voltage - Isolation | Power (Watts) | Standard Number | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Type | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Current - Output 1 | Features | Applications | Mounting Type | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 15 V | 4000 V | 51 W | 60335-1 62368-1 | 87 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Conformal Coated Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 3.4 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 24 V | 4000 V | 53 W | 60335-1 62368-1 | 88 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 2.2 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 48 V | 4000 V | 53 W | 60335-1 62368-1 | 90 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 1.1 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 24 V | 4000 V | 53 W | 60335-1 62368-1 | 88 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 2.2 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 4000 V | 52 W | 60335-1 62368-1 | 89 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 1.45 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | 36 V | |
aimtec | 5 V | 4000 V | 50 W | 60335-1 62368-1 | 83 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Conformal Coated Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 10 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 48 V | 4000 V | 53 W | 60335-1 62368-1 | 90 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Conformal Coated Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 1.1 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 15 V | 4000 V | 51 W | 60335-1 62368-1 | 87 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 3.4 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 12 V | 4000 V | 50 W | 60335-1 62368-1 | 86 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 4.2 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount | |
aimtec | 15 V | 4000 V | 51 W | 60335-1 62368-1 | 87 % | -30 °C | 70 °C | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 1 | Enclosed | 305 VAC 430 VDC | 85 VAC 120 VDC | CB CE EN IEC UL | 3.4 A | Adjustable Output | Household Appliances ITE (Commercial) | Chassis Mount |
