HR22 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN JACK HSG ML 20P INLN PNL MT
| Part | Number of Positions | Features | Contact Type | Shell Size - Insert [custom] | Mounting Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Type | Mounting Feature | Connector Type | Contact Shape | Shell Material | Shell Finish | Shielding | Note | Material Flammability Rating | Fastening Type | Insert Material | Primary Material | Color | Contact Finish - Mating | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Voltage Rating | Applications | Accessory Type | For Use With/Related Products | Contact Termination | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Finish | Contact Size | Termination Finish | Ingress Protection | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 20 | Backshell Cable Clamp Strain Relief | Crimp | 12 | Free Hanging (In-Line) Panel Mount | Keyed | 85 °C | -25 °C | Silver | For Male Pins | Bulkhead - Front Side Nut | Jack Housing | Circular | Zinc Alloy | Nickel | Unshielded | Contacts Not Included | UL94 V-0 | Threaded | Polybutylene Terephthalate (PBT) | ||||||||||||||||||
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 20 | Backshell Clamp | 12 | Free Hanging (In-Line) Panel Mount | Keyed | 85 °C | -25 °C | Bulkhead - Front Side Nut | Jack Female Sockets | Zinc Alloy | Nickel | Unshielded | UL94 V-0 | Threaded | Polybutylene Terephthalate (PBT) | Metal | Black Silver | Silver | Beryllium Copper | Acrylonitrile Butadiene Rubber (NBR) | 2 A | 100 VAC 140 VDC | Industrial | |||||||||||||||
 Hirose Electric Co Ltd | Waterproof | 12 | Cap (Cover) Dust | HR22 Series Receptacle | ||||||||||||||||||||||||||||||||||

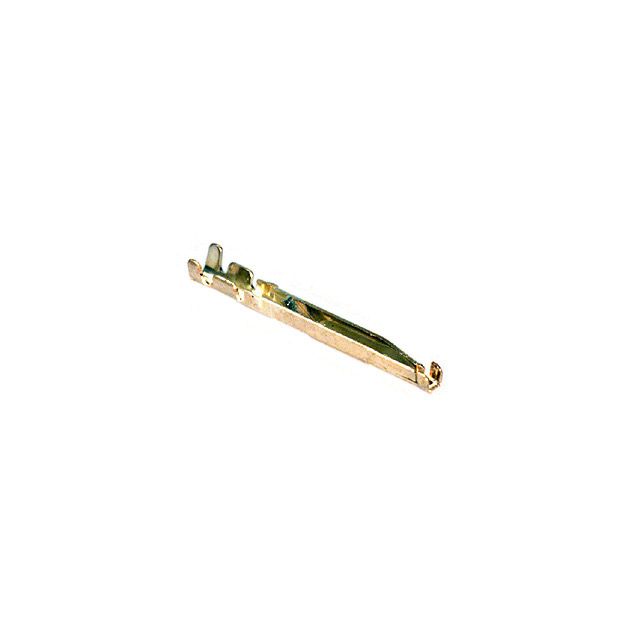

 Hirose Electric Co Ltd | Socket | Signal Stamped | Phosphor Bronze | Crimp | 24 AWG | 28 AWG | Gold | 1 mm | Phosphor Bronze | |||||||||||||||||||||||||||||

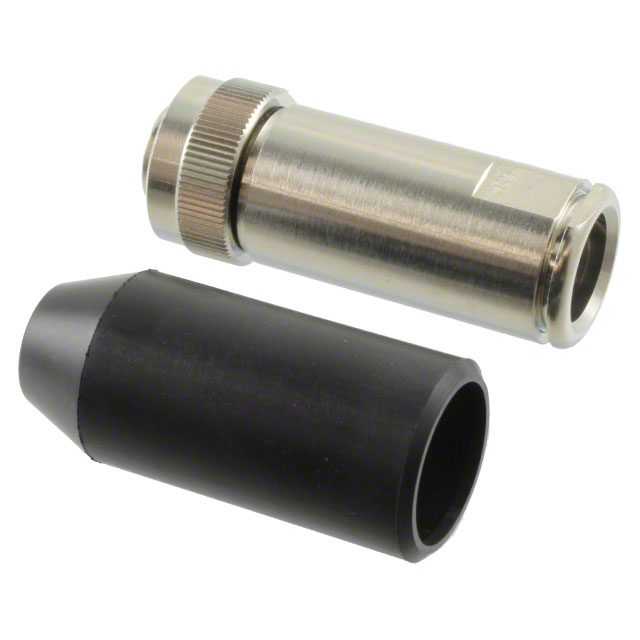

 Hirose Electric Co Ltd | 20 | Backshell Clamp Coupling Nut | 12 | Free Hanging (In-Line) | Keyed | 85 °C | -25 °C | Plug Male Pins | Zinc Alloy | Nickel | Unshielded | UL94 V-0 | Threaded | Polybutylene Terephthalate (PBT) | Metal | Black Silver | Silver | Brass | Acrylonitrile Butadiene Rubber (NBR) | 2 A | 100 VAC 140 VDC | Industrial | IP67/IP68 | |||||||||||||||

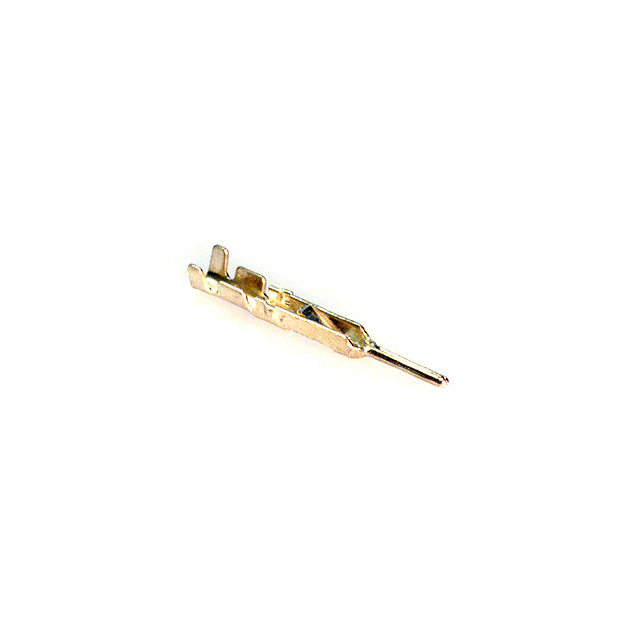

 Hirose Electric Co Ltd | Insulation Support | Pin | Signal Stamped | Phosphor Bronze | Crimp | 24 AWG | 28 AWG | Silver | 1 mm | Phosphor Bronze | ||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 20 | Crimp | 12 | Free Hanging (In-Line) | Keyed | 85 °C | -25 °C | Silver | For Female Sockets | Plug Housing | Circular | Zinc Alloy | Nickel | Unshielded | Contacts Not Included | UL94 V-0 | Threaded | Polybutylene Terephthalate (PBT) | IP67/IP68 | |||||||||||||||||||
Hirose Electric Co Ltd | Metal Chain with Ring Waterproof | 12 | Silver | Cap (Cover) Dust | HR22 Series Receptacle | Brass | ||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd |
