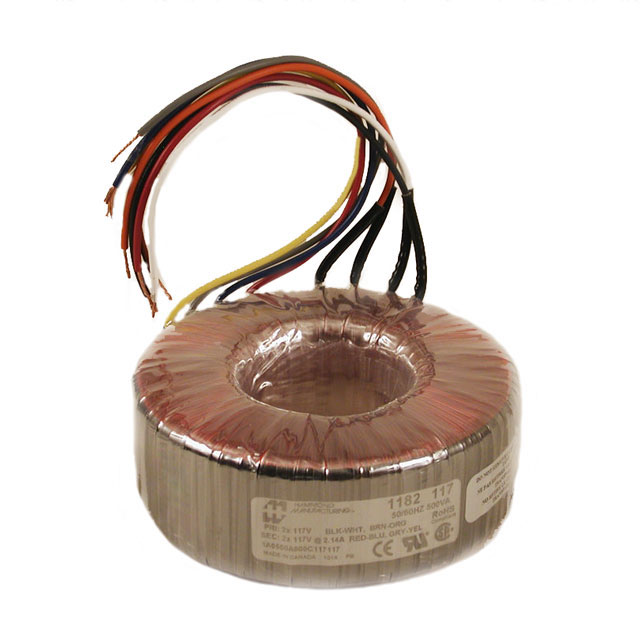

1182 Series

Catalog

PWR XFMR TOROIDAL 80VA CHAS MT

Part	Mounting Type	Type	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Weight	Weight	Voltage - Isolation	Termination Style	Primary Winding(s)	Voltage - Secondary (Full Load)	Size / Dimension [diameter]	Secondary Winding(s)	Power - Max [Max]	Height - Seated (Max)	Voltage - Primary	Current - Output (Max) [Max]	Height - Seated (Max) [Max]	Weight [custom]	Weight [custom]	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Height - Seated (Max) [Max] [z]	Accessory Type	For Use With/Related Products
Hammond Manufacturing 1182N9	Chassis Mount	Toroidal	8.88 A	4.44 A	2.1 lb	952.5 g	4000 VAC	Wire Leads	Dual	9 V 18 V	88.9 mm	Dual	80 VA	38.1 mm	117 V 234 V
Hammond Manufacturing 1182M240	Chassis Mount	Toroidal			11 lbs	5 kg	4000 VAC	Wire Leads	Dual	240 V	152.4 mm	Single	625 VA		117 V 234 V	2.6 A	60.45 mm
Hammond Manufacturing 1182J22	Chassis Mount	Toroidal					4000 VAC	Wire Leads	Dual	22 V 44 V	82.55 mm	Dual	50 VA	38.1 mm	117 V 234 V			680.4 g	1.5 lbs	1.14 A 2.28 A
Hammond Manufacturing 1182N240	Chassis Mount	Toroidal					4000 VAC	Wire Leads	Dual	240 V	152.4 mm	Single	750 VA		117 V 234 V	3.13 A	73.15 mm	5.9 kg	13 lbs
Hammond Manufacturing 1182G18	Chassis Mount	Toroidal			4.7 lbs	2.1 kg	4000 VAC	Wire Leads	Dual		4.5 in	Dual	225 VA		117 V 234 V					6.25 A 12.5 A	18 V	36 V	47.75 mm

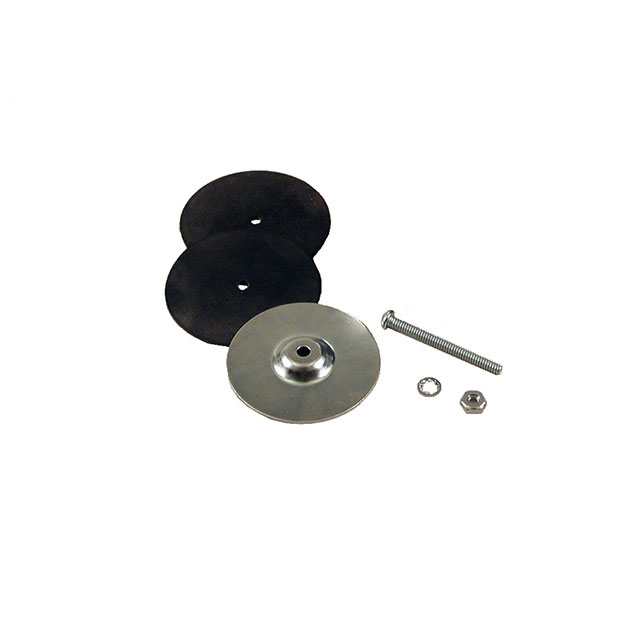

Hammond Manufacturing 1182KIT160																								Hardware Kit	1182 Series

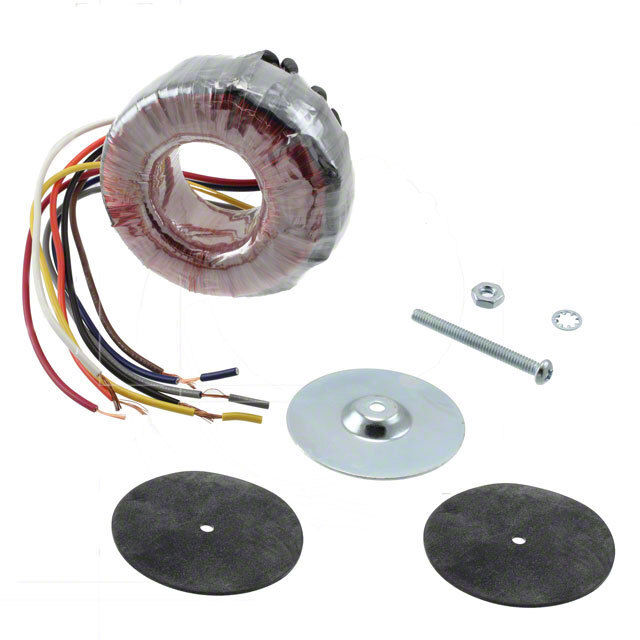

Hammond Manufacturing 1182L12	Chassis Mount	Toroidal	4.16 A	2.08 A			4000 VAC	Wire Leads	Dual		82.55 mm	Dual	50 VA	38.1 mm	117 V 234 V			680.4 g	1.5 lbs		12 V	24 V
Hammond Manufacturing 1182K240	Chassis Mount	Toroidal			6 lbs	2.7 kg	4000 VAC	Wire Leads	Dual	240 V	127 mm	Single	300 VA		117 V 234 V	1.25 A							47.75 mm
Hammond Manufacturing 1182P30	Chassis Mount	Toroidal			6 lbs	2.7 kg	4000 VAC	Wire Leads	Dual	30 V 60 V	127 mm	Dual	300 VA		117 V 234 V					5 A 10 A			47.75 mm
Hammond Manufacturing 1182G110	Chassis Mount	Toroidal	454 mA	227 mA			4000 VAC	Wire Leads	Dual	110 V 220 V	82.55 mm	Dual	50 VA	38.1 mm	117 V 234 V			680.4 g	1.5 lbs
