HIF3BAE Series

Headers & Wire Housings 34P PIN HEADER T/H R/A 4-WALL CNG FINSH

Manufacturer: Hirose Electric Co Ltd

Catalog

Headers & Wire Housings 34P PIN HEADER T/H R/A 4-WALL CNG FINSH

Catalog

Headers & Wire Housings 34P PIN HEADER T/H R/A 4-WALL CNG FINSH

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Connector Type	Material Flammability Rating	Fastening Type	Insulation Color	Number of Rows [custom]	Contact Finish - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Voltage Rating	Contact Type	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Shape	Features	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Color	Row Spacing	Row Spacing	Wire Gauge	Cable Termination	Contact Finish	Pitch	Pitch	Wire Type
Hirose Electric Co Ltd HIF3BAE-50PA-2.54DS(63)	78.7 µin	2 µm	Right Angle Through Hole	0.1 in	2.54 mm	Varies by Wire Gauge	0.118 in	3 mm	0.335 "	8.51 mm	Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2	Tin	50	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square
Hirose Electric Co Ltd HIF3BAE-50PA-2.54DS(71)	78.7 µin	2 µm	Right Angle Through Hole	0.1 in	2.54 mm		0.118 in	3 mm	0.335 "	8.51 mm	Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2	Tin	50	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Mounting Flange	6 mm	0.236 in

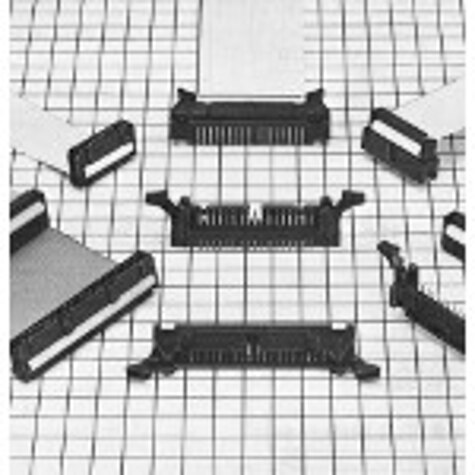

Hirose Electric Co Ltd HIF3BAE-60PA-2.54DSA(71)			Through Hole	0.1 in	2.54 mm		0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2		60	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in	0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAE-40PA-2.54DSA(63)	78.7 µin	2 µm	Through Hole	0.1 in	2.54 mm	Varies by Wire Gauge	0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2	Tin	40	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot					0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAE-50PA-2.54DSA(71)			Through Hole	0.1 in	2.54 mm		0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2		50	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in	0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAE-30PA-2.54DSA(63)	78.7 µin	2 µm	Through Hole	0.1 in	2.54 mm	Varies by Wire Gauge	0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2	Tin	30	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot					0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAE-34PA-2.54DSA(88)			Through Hole	0.1 in	2.54 mm		0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2			-55 C	85 °C	Board to Cable/Wire		Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder			Polybutylene Terephthalate (PBT)	Square	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in	0.701 in	17.8 mm	34
Hirose Electric Co Ltd HIF3BAE-60PD-254R-MC			Free Hanging (In-Line)								Header		Latch Lock/Eject Hooks		2		60										Male Pin							Feed Through Polarizing Key Strain Relief								Black	2.54 mm	0.1 "	28 AWG	IDC	Gold	0.1 "	2.54 mm	Ribbon Cable

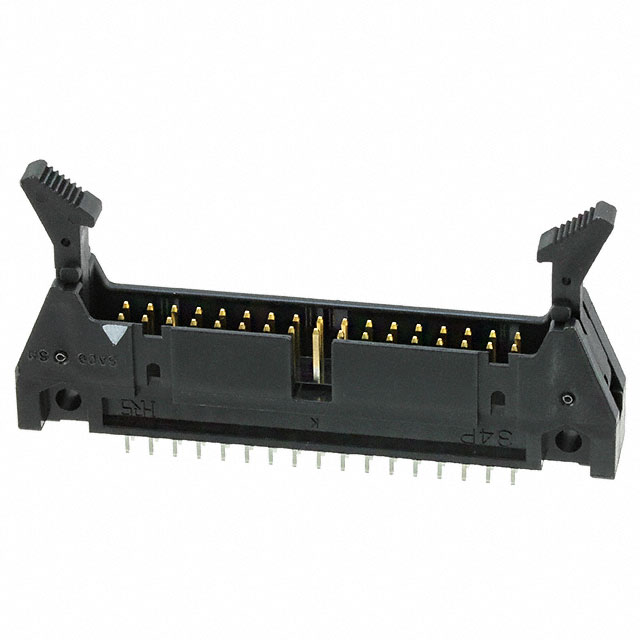

Hirose Electric Co Ltd HIF3BAE-34PA-2.54DSA(71)			Through Hole	0.1 in	2.54 mm		0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2			-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in	0.701 in	17.8 mm	34
Hirose Electric Co Ltd HIF3BAE-30PA-2.54DSA(71)			Through Hole	0.1 in	2.54 mm		0.13 "	3.3 mm			Header	UL94 V-0	Latch Lock/Eject Hooks	Black	2		30	-55 C	85 °C	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 "	2.54 mm	Brass	200 V	Male Pin	All	Solder	8 µin	0.203 µm	Polybutylene Terephthalate (PBT)	Square	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in	0.701 in	17.8 mm
