DF3E Series

Catalog

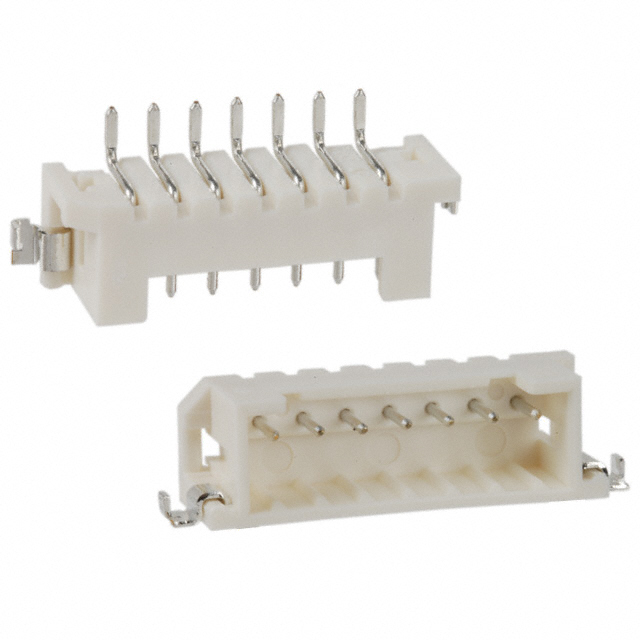

CONN HEADER SMD R/A 7POS 2MM

Part	Material Flammability Rating	Connector Type	Features	Fastening Type	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Mounting Type	Number of Positions	Current Rating (Amps)	Contact Type	Style	Voltage Rating	Pitch - Mating	Pitch - Mating	Shrouding	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd DF3E-7P-2H(21)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.6 mm	0.22 in	Beige	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Right Angle Surface Mount	7	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall

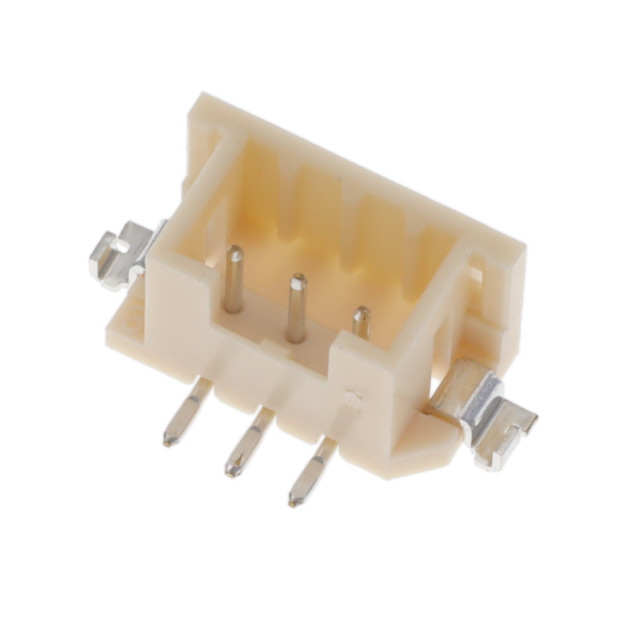

Hirose Electric Co Ltd DF3E-3P-2V(24)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Black	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount		Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall	8.4 mm	39.4 çin	1 çm	39.4 µin	1 µm

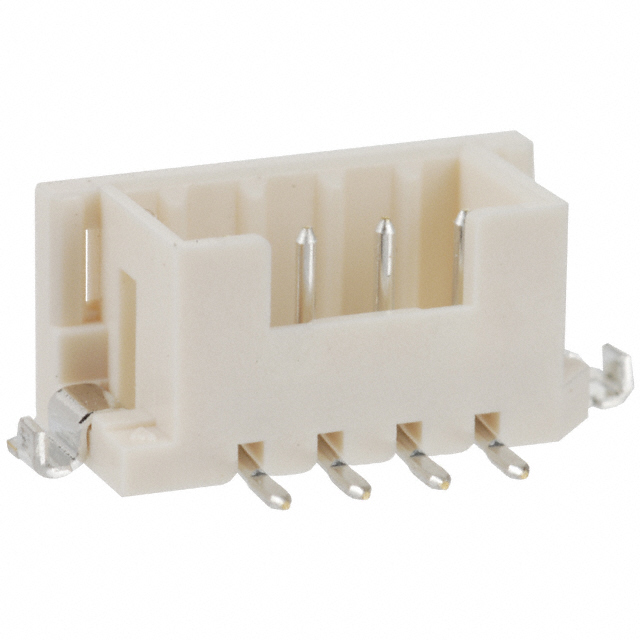

Hirose Electric Co Ltd DF3E-4P-2V(24)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Black	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount	4	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall	8.4 mm	39.4 çin	1 çm	39.4 µin	1 µm

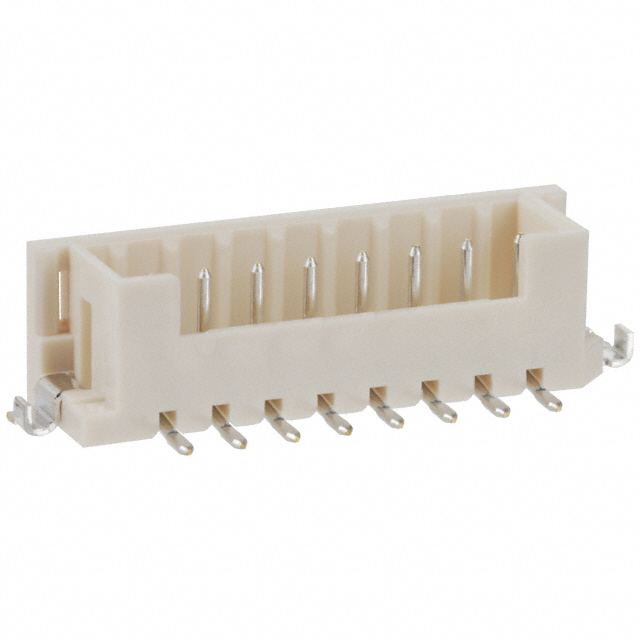

Hirose Electric Co Ltd DF3E-8P-2V(51)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Beige	Solder		Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount	8	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall						Gold

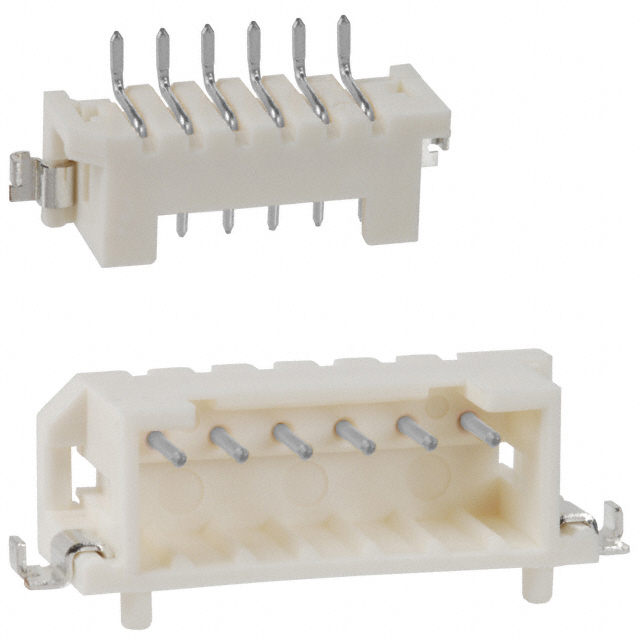

Hirose Electric Co Ltd DF3E-6P-2H(20)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.6 mm	0.22 in	Beige	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Right Angle Surface Mount	6	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall

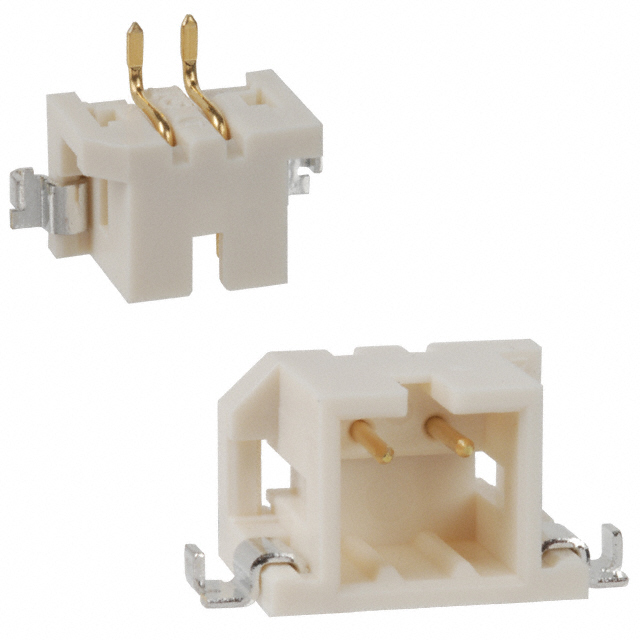

Hirose Electric Co Ltd DF3E-2P-2H(54)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.6 mm	0.22 in	Natural	Solder	Gold	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Right Angle Surface Mount	2	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall		8 µin	0.203 µm			Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF3E-8P-2V(21)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Beige	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount	8	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall
Hirose Electric Co Ltd DF3E-4P-2V(21)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Beige	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount	4	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall

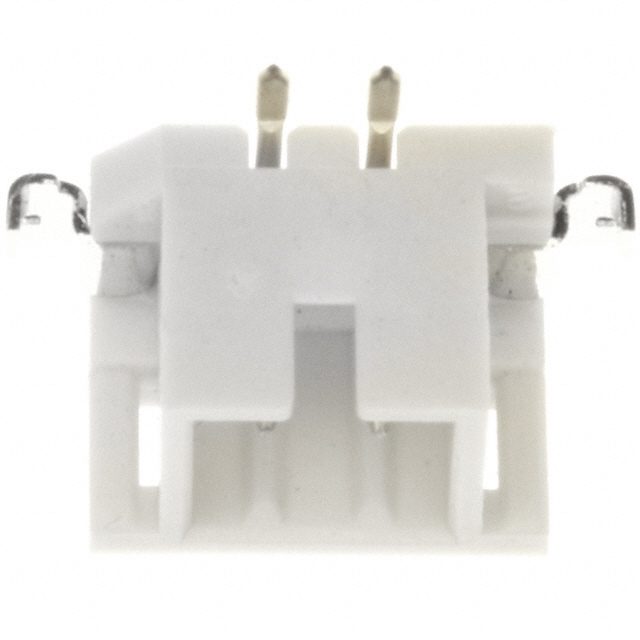

Hirose Electric Co Ltd DF3E-2P-2V(50)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.9 mm	0.232 in	Beige	Solder		Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Surface Mount	2	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall						Gold

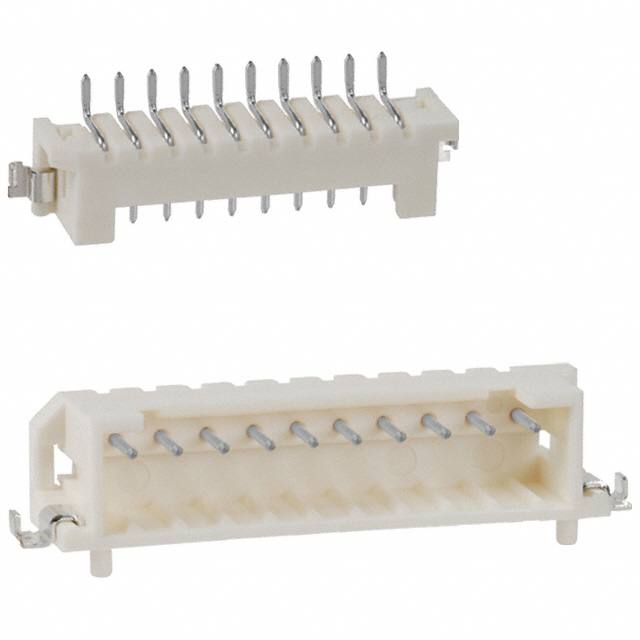

Hirose Electric Co Ltd DF3E-10P-2H(24)	UL94 V-0	Header	Board Guide Solder Retention	Push-Pull	All	Brass	5.6 mm	0.22 in	Natural	Solder	Tin	Nylon Polyamide (PA)	-55 C	105 ░C	Circular	1	Right Angle Surface Mount	10	Varies by Wire Gauge	Male Pin	Board to Board Cable	250 VAC	0.079 "	2 mm	Shrouded - 4 Wall		39.4 çin	1 çm	39.4 µin	1 µm
