FH67 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN FFC VERT 40POS 0.5MM SMD
| Part | Housing Color | Actuator Color | Mating Cycles | Current Rating (Amps) | Housing Material | Mounting Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Contact Material | FFC, FCB Thickness | Contact Finish | Connector/Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Cable End Type | Flat Flex Type | Material Flammability Rating | Locking Feature | Actuator Material | Voltage Rating | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gray | Black | 10 | 0.5 A | Liquid Crystal Polymer (LCP) | Surface Mount | 0.02 " | 0.5 mm | 5.2 mm | 0.205 in | Copper Alloy | 0.33 mm | Gold | Contacts Vertical - 1 Sided | -55 C | 125 °C | 40 | Notched | FFC FPC | UL94 V-0 | Rotary Lock | Liquid Crystal Polymer (LCP) | 50 V | Solder Retention | Solder |

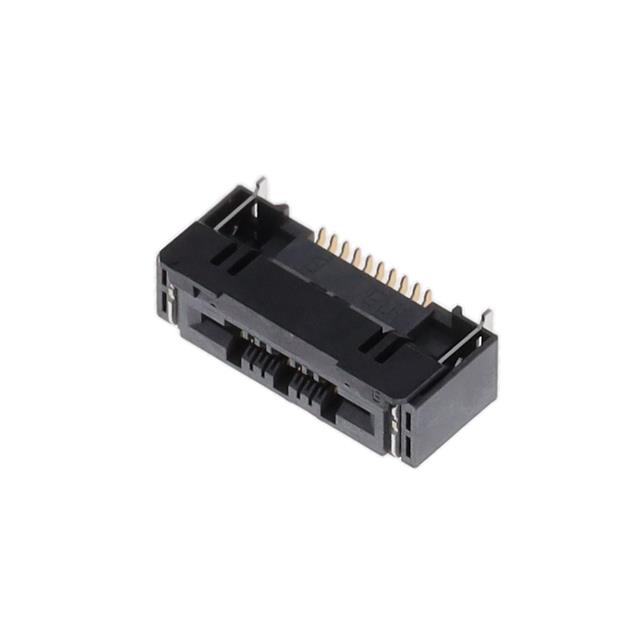

 Hirose Electric Co Ltd | Gray | Black | 10 | 0.5 A | Liquid Crystal Polymer (LCP) | Surface Mount | 0.02 " | 0.5 mm | 5.2 mm | 0.205 in | Copper Alloy | 0.33 mm | Gold | Contacts Vertical - 1 Sided | -55 C | 125 °C | 10 | Notched | FFC FPC | UL94 V-0 | Rotary Lock | Liquid Crystal Polymer (LCP) | 50 V | Solder Retention | Solder |
Hirose Electric Co Ltd | Gray | Black | 10 | 0.5 A | Liquid Crystal Polymer (LCP) | Surface Mount | 0.02 " | 0.5 mm | 5.2 mm | 0.205 in | Copper Alloy | 0.33 mm | Gold | Contacts Vertical - 1 Sided | -55 C | 125 °C | 20 | Notched | FFC FPC | UL94 V-0 | Rotary Lock | Liquid Crystal Polymer (LCP) | 50 V | Solder Retention | Solder |
