833-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

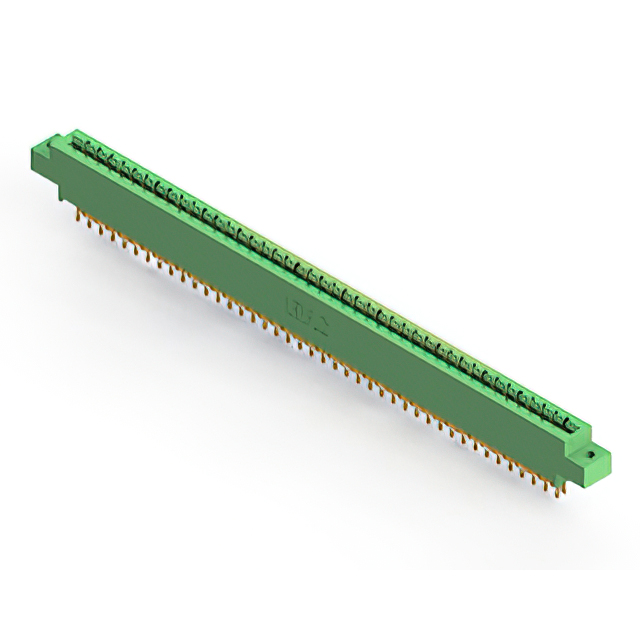

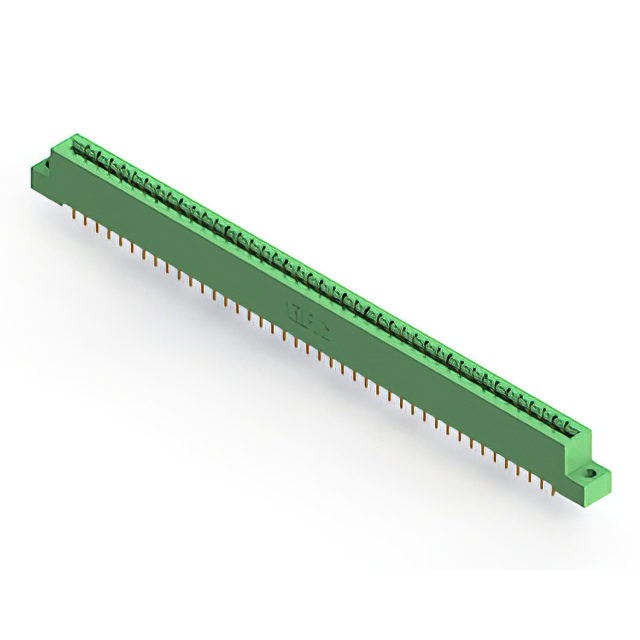

CONN EDGE DUAL FMALE 84POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions [custom] | Contact Type | Gender | Contact Finish | Pitch | Pitch | Number of Rows [custom] | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Read Out | Color | Card Type | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Solder | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 0.25 Ám | 10 Áin | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Solder | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 0.25 Ám | 10 Áin | Card Extender | 3.25 mm | 0.128 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | Side Mount Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Right Angle Through Hole | Solder | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | 2.95 mm | 0.116 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 84 | Cantilever | Female | Gold | 3.96 mm | 0.156 in | 2 | 42 | 125 °C | -40 C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Green | Non Specified - Dual Edge | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin |
