DF3-3 Series

Catalog

CONN RCPT HSG 3POS 2.00MM

Part	Note	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Mounting Type	Contact Type	Connector Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Current Rating (Amps)	Style	Fastening Type	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Contact Finish - Post	Features	Overall Contact Length [x]	Overall Contact Length [x]	Wire Type	Cable Termination	Wire Gauge	Contact Finish

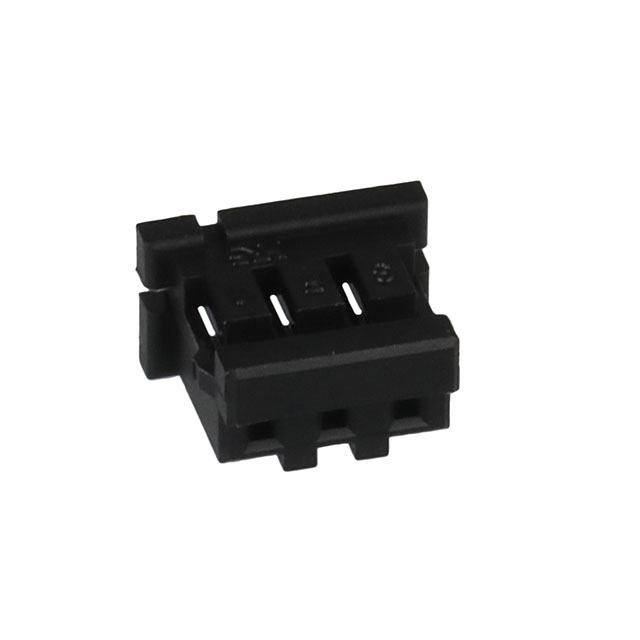

Hirose Electric USA, Inc. DF3-3S-2C	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	Black	0.079 in	2 mm

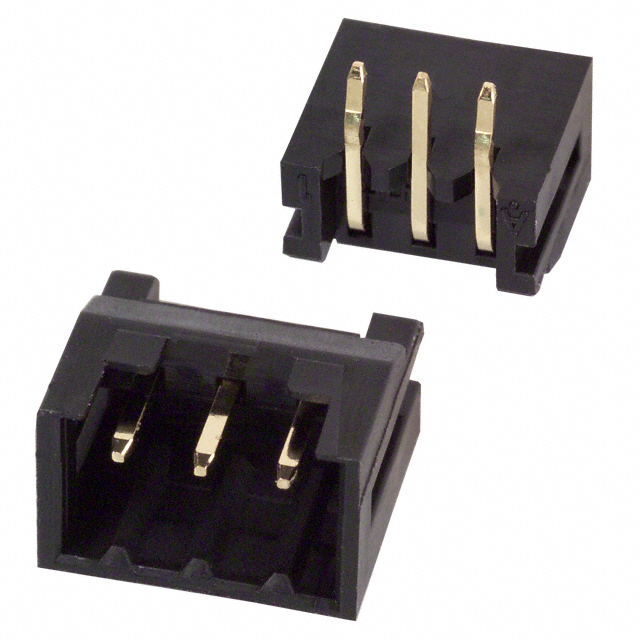

Hirose Electric USA, Inc. DF3-3P-2DS(01)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole Right Angle	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall	0.203 Ám	8 Áin	0.122 in	3.1 mm	Press-Fit Solder

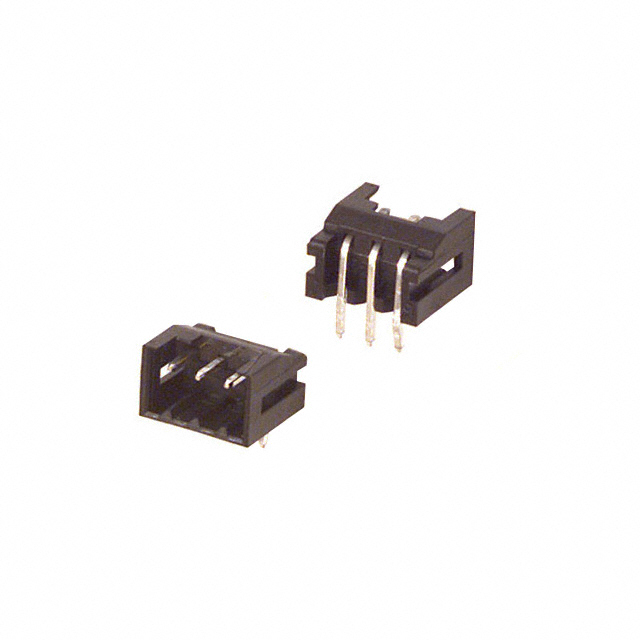

Hirose Electric USA, Inc. DF3-3P-2DS		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole Right Angle	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm		All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall			0.122 in	3.1 mm	Press-Fit Solder	Tin

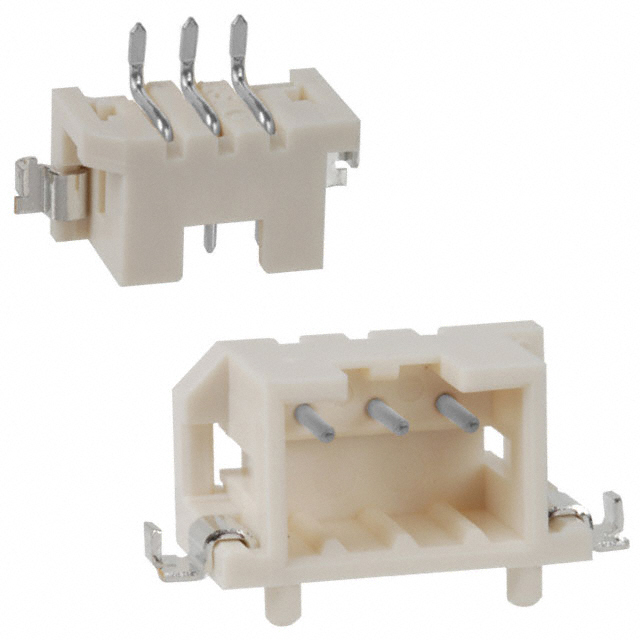

Hirose Electric USA, Inc. DF3-3P-2H(20)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Surface Mount Right Angle	Male Pin	Header					Beige	UL94 V-0	0.22 in	5.6 mm				All	0.079 in	2 mm	Circular	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall					Solder	Tin	Board Guide
Hirose Electric USA, Inc. DF3-3P-2DSA(30)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall			0.122 in	3.1 mm	Press-Fit Solder			0.299 in	7.6 mm

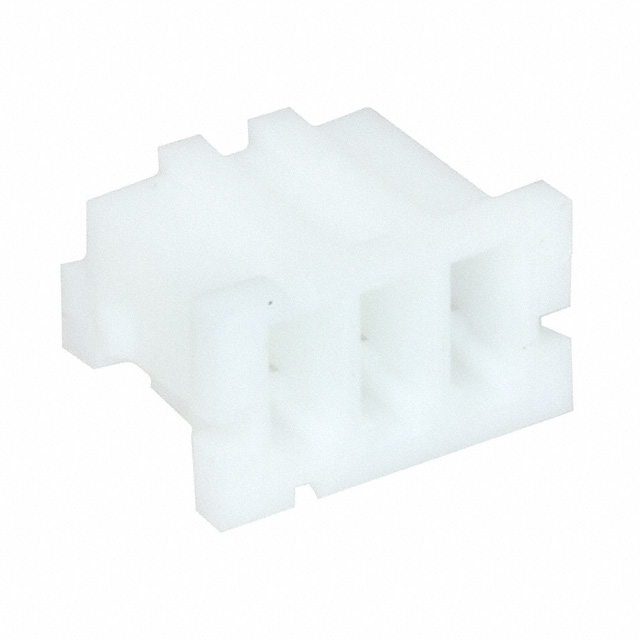

Hirose Electric USA, Inc. DF3-3S-2C(10)	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	White	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3EP-2C(20)	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Plug	Crimp	Black	0.079 in	2 mm

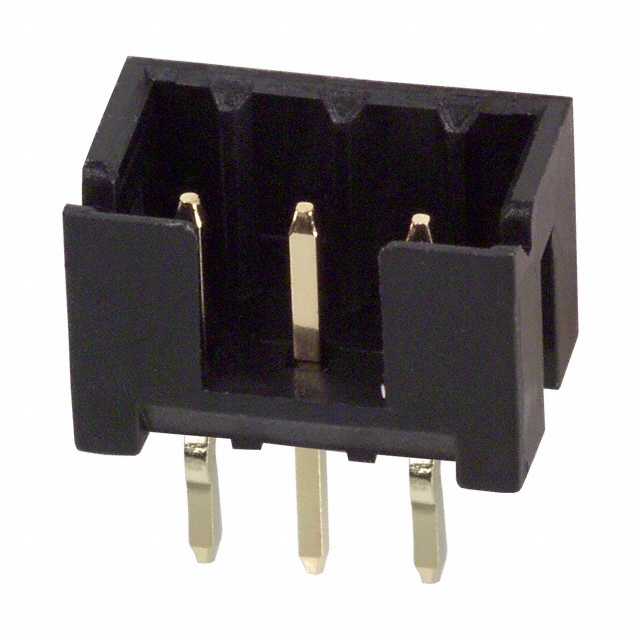

Hirose Electric USA, Inc. DF3-3P-2DSA(01)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall	0.203 Ám	8 Áin	0.122 in	3.1 mm	Press-Fit Solder			0.299 in	7.6 mm

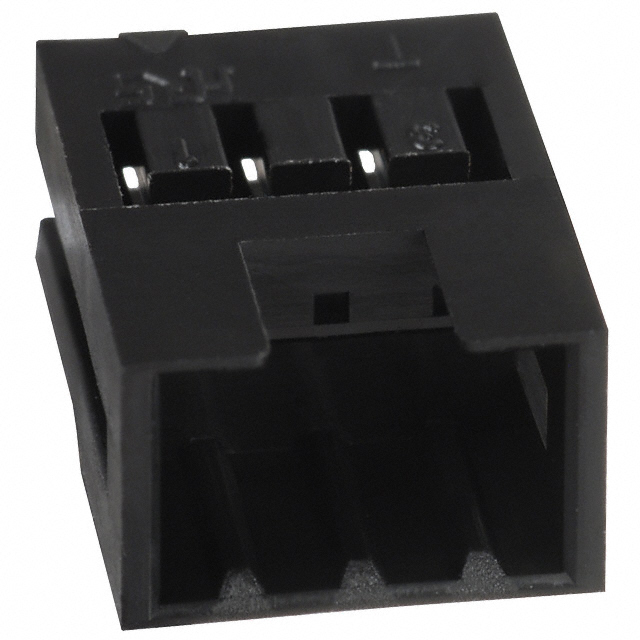

Hirose Electric USA, Inc. DF3-3EP-2C	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Plug	Crimp	Black	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3S-2R26(05)		1				Free Hanging (In-Line)	Female Socket	Receptacle		Black	0.079 in	2 mm																							Closed End			Discrete	IDC	26 AWG	Tin
