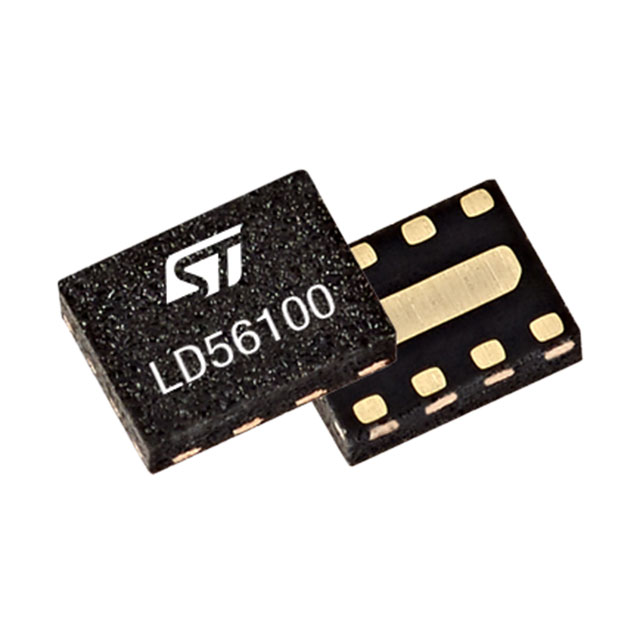

LD56100 Series

Catalog

1 A VERY LOW DROPOUT FAST TRANSIENT ULTRA-LOW NOISE LINEAR REGULATOR

Part	Output Configuration	Number of Regulators	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Max) [Max]	Protection Features	Current - Quiescent (Iq)	PSRR [Max]	PSRR [Min]	Voltage Dropout (Max) [Max]	Control Features	Current - Output	Voltage Dropout (Max)
STMicroelectronics LD56100DPU30R	Positive	1	3 V	Surface Mount	8-DFN (1.6x1.2)	-40 C	125 °C	8-XFDFN Exposed Pad	5.5 V	Over Current Over Temperature Short Circuit	155 µA	70 dB	55 dB	0.165 V	Enable Soft Start	1 A
STMicroelectronics LD56100DPU25R	Positive	1	2.5 V	Surface Mount	8-DFN (1.6x1.2)	-40 C	125 °C	8-XFDFN Exposed Pad	5.5 V	Over Current Over Temperature Short Circuit	155 µA	70 dB	55 dB	0.19 V	Enable	1 A
STMicroelectronics LD56100DPU33R	Positive	1	3.3 V	Surface Mount	8-DFN (1.6x1.2)	-40 C	85 °C	8-XFDFN Exposed Pad	5.5 V	Over Current Over Temperature	155 µA	70 dB	55 dB		Enable Soft Start	1 A	0.16 V
STMicroelectronics LD56100DPU18R	Positive	1	1.8 V	Surface Mount	8-DFN (1.6x1.2)	-40 C	125 °C	8-XFDFN Exposed Pad	5.5 V	Over Current Over Temperature Short Circuit	155 µA	70 dB	55 dB	0.285 V	Enable	1 A
STMicroelectronics LD56100DPU28R	Positive	1	2.8 V	Surface Mount	8-DFN (1.6x1.2)	-40 C	125 °C	8-XFDFN Exposed Pad	5.5 V	Over Current Over Temperature Short Circuit	155 µA	70 dB	55 dB		Enable	1 A	0.175 V
