AOTF41 Series

Catalog

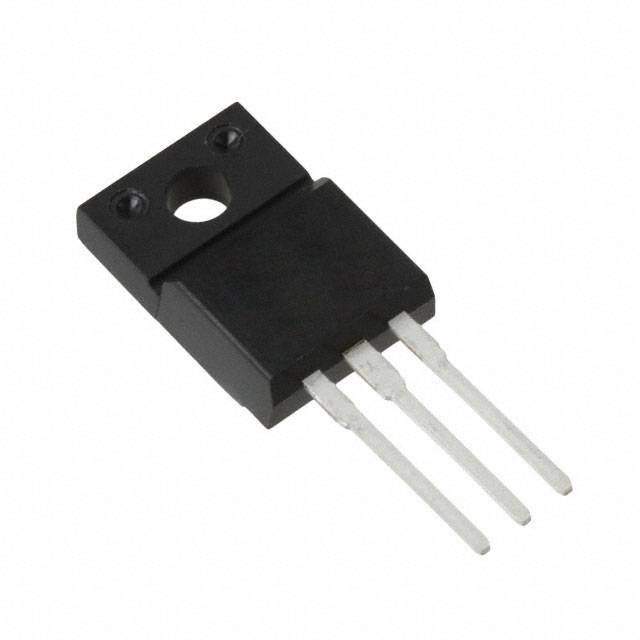

MOSFET P-CH 40V 34A TO220FL

Part	Supplier Device Package	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Rds On (Max) @ Id, Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds
Alpha & Omega Semiconductor Inc. AOTF4185	TO-220FL	P-Channel	2550 pF	4.5 V 10 V	20 V	175 °C	-55 °C	2.5 V	Through Hole	34 A	33 W	40 V	55 nC	MOSFET (Metal Oxide)	16 mOhm	TO-220-3 Full Pack
Alpha & Omega Semiconductor Inc. AOTF4126	TO-220F	N-Channel		7 V 10 V	25 V	175 °C	-55 °C	4 V	Through Hole	6 A 27 A	2.1 W 42 W	100 V	42 nC	MOSFET (Metal Oxide)	24 mOhm	TO-220-3 Full Pack	2200 pF
