SIHFZ48 Series

Catalog

MOSFET N-CH 60V 50A D2PAK

Part	Mounting Type	Vgs (Max)	Technology	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Power Dissipation (Max) [Max]

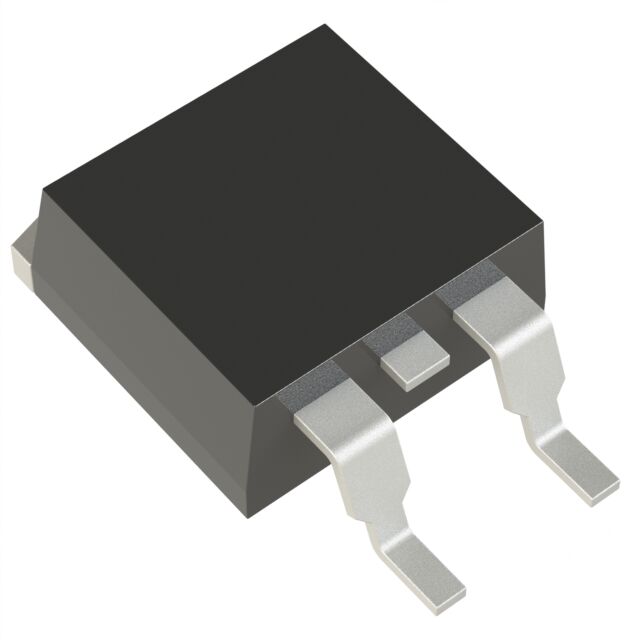

Vishay General Semiconductor - Diodes Division SIHFZ48S-GE3	Surface Mount	20 V	MOSFET (Metal Oxide)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 V	4 V	18 mOhm	-55 °C	175 ░C	N-Channel	TO-263 (D2PAK)	50 A	3.7 W 190 W	110 nC	2400 pF	60 V
Vishay General Semiconductor - Diodes Division SIHFZ48RS-GE3	Surface Mount	20 V	MOSFET (Metal Oxide)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 V	4 V	18 mOhm	-55 °C	175 ░C	N-Channel	TO-263 (D2PAK)	50 A		110 nC	2400 pF	60 V	190 W
