AD5423 Series

Single Channel, 16-Bit Current/Voltage Output DAC with HART Connectivity

Catalog

Single Channel, 16-Bit Current/Voltage Output DAC with HART Connectivity

Part	Mounting Type	Resolution (Bits)	Type	Voltage Supply Source	Data Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Number of DAC's	Utilized IC / Part	Supplied Contents	Settling Time	DAC Type	Number of Bits
Analog Devices AD5423BCPZ-RL7	Surface Mount	16 b	DAC	Analog and Digital	SPI	5.5 V 33 V	1.71 V 5 V	1	-40 °C	115 °C	32-WFQFN Exposed Pad CSP	32-LFCSP (5x5)

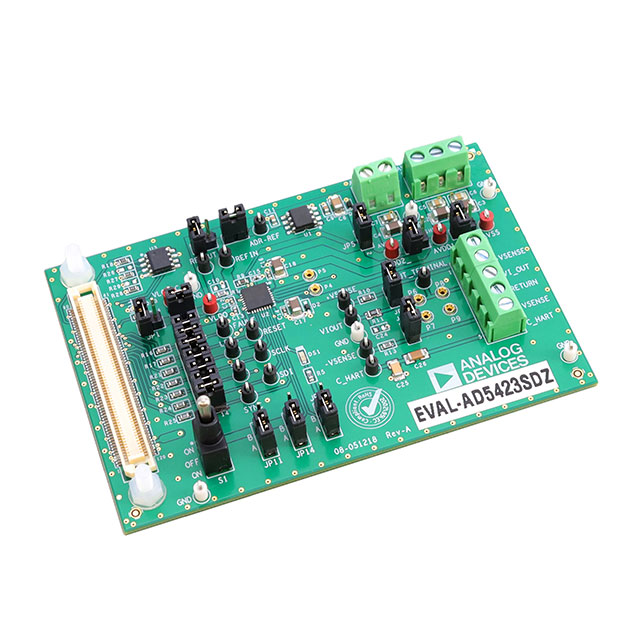

Analog Devices EVAL-AD5423SDZ					Serial SPI								1	AD5423	Board(s)	12 µs	Current Voltage	16

Catalog

Single Channel, 16-Bit Current/Voltage Output DAC with HART Connectivity

Key Features

• 16-bit resolution and monotonicity

• Current or voltage output available on a single terminal

• Current output ranges: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 24 mA, ±20 mA, ±24 mA, and −1 mA to +22 mA

• Voltage output ranges (with 20% overrange): 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V

• User programmable offset and gain

• Advanced on-chip diagnostics, including a 12-bit ADC

• On-chip reference

• −40°C to +115°C temperature range

• 32-Lead, 5 mm × 5 mm LFCSP package

Description

The AD5423 is a single-channel, voltage and current output digital-to-analog converter (DAC) that operates with a power supply range from −33 V minimum on AVSSto +33 V maximum on AVDD1. The CHARTpin enables a Highway Addressable Remote Transducer®(HART) signal to be coupled on the current output.The AD5423 uses a versatile, 4-wire, serial peripheral interface (SPI) that operates at clock rates of up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, digital signal processor (DSP), and microcontroller interface standards. The interface also features an optional SPI cyclic redundancy check (CRC) and a watchdog timer (WDT). The AD5423 offers improved diagnostic features from earlier versions of similar DACs, such as an integrated, 12-bit diagnostic analog-to-digital converter (ADC).Product Highlights16-bit performance.Range of diagnostic features.Integrated 12-bit monitoring ADC.HART compliant.ApplicationsProcess controlActuator controlChannel isolated analog outputsProgrammable logic controller (PLC) and distributed control systems (DCS) applicationsHART network connectivity
