83940I-01 Series

Low Skew,1-to-18 LVPECL-to-LVCMOS/LVTTL Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-18 LVPECL-to-LVCMOS/LVTTL Fanout Buffer

Part	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Mounting Type	Input	Differential - Input:Output	Frequency - Max [Max]	Supplier Device Package	Number of Circuits	Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type
Renesas Electronics Corporation 83940DYILFT	18	2	Surface Mount	CML LVCMOS LVPECL LVTTL SSTL	Yes/No	250 MHz	32-TQFP (7x7)	1	LVCMOS LVTTL	2.375 V	3.465 V	85 °C	-40 °C	32-LQFP	Fanout Buffer (Distribution) Multiplexer
Renesas Electronics Corporation 83940DYI-01LFT	18	2	Surface Mount	CML LVCMOS LVPECL LVTTL SSTL	Yes/No	175 MHz	32-TQFP (7x7)	1	LVCMOS LVTTL	2.375 V	3.465 V	85 °C	-40 °C	32-LQFP	Fanout Buffer (Distribution) Multiplexer
Renesas Electronics Corporation 83940DYLF	18	2	Surface Mount	CML LVCMOS LVPECL LVTTL SSTL	Yes/No	250 MHz	32-TQFP (7x7)	1	LVCMOS LVTTL	2.375 V 3.135 V	2.625 V 3.465 V	70 °C	0 °C	32-LQFP	Fanout Buffer (Distribution)

Catalog

Low Skew,1-to-18 LVPECL-to-LVCMOS/LVTTL Fanout Buffer

Description

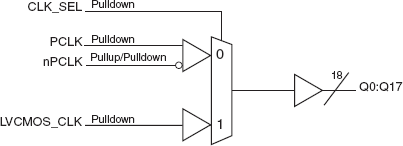

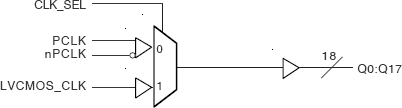

The 83940DI is a low skew, 1-to-18 LVPECL- to-LVCMOS/LVTTL Fanout Buffer. The 83940DI has two selectable clock inputs. The PCLK, nPCLK pair can accept LVPECL, CML, or SSTL input levels. The LVCMOS_CLK can accept LVCMOS or LVTTL input levels. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The 83940DI is characterized at full 3.3V and 2.5V or mixed 3.3V core, 2.5V output operating supply modes. Guaranteed output and part-to-part skew characteristics make the 83940DI ideal for those clock distribution applications demanding well defined performance and repeatability.
