663-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

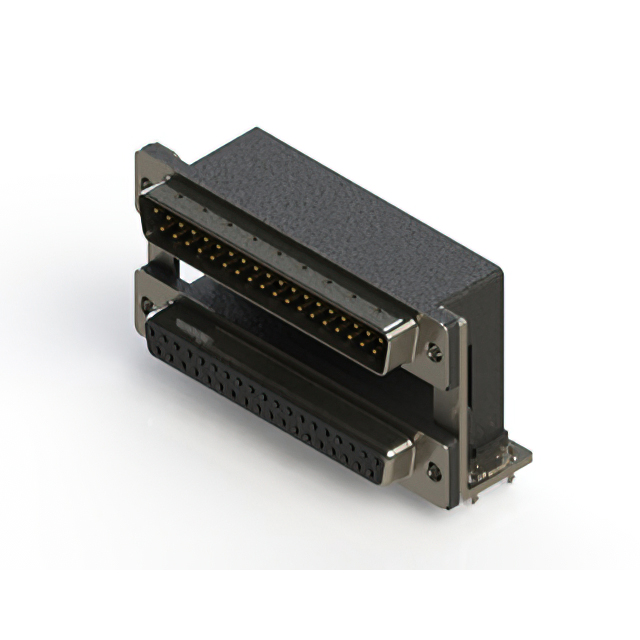

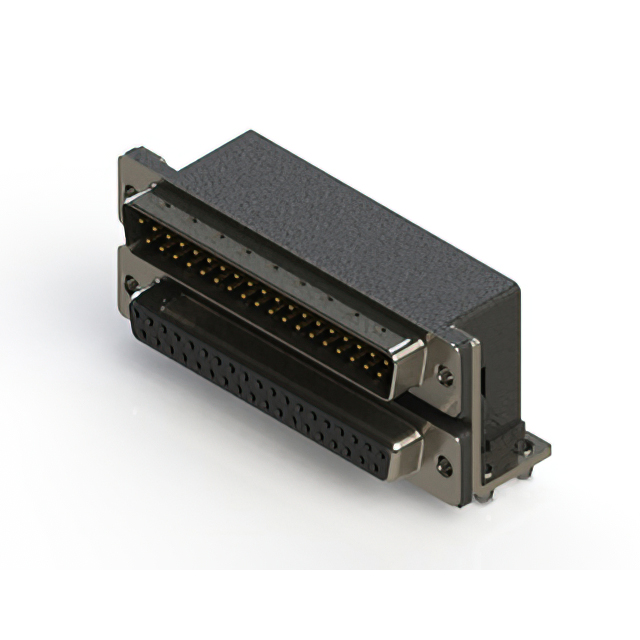

663 SERIES RIGHT ANGLE DUAL D-SU
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Shell Size, Connector Layout | Number of Positions [Min] | Number of Positions [Max] | Connector Type | Backset Spacing | Backset Spacing | Mounting Type | Flange Feature | Flange Feature | Contact Type | Termination | Shell Material, Finish | Material Flammability Rating | Connector Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features | Current Rating (Amps) | Number of Rows [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell | 4-40 | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 30 Áin | 0.76 Ám | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | |
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 30 Áin | 0.76 Ám | Grounding Indents Shielded | 3 A | 2 | ||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | Flash | |||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell (M3) | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | Grounding Indents Mounting Brackets Shielded | 3 A | 2 | Flash | |||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 15 µin | 0.38 µm | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | ||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell | 4-40 | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 15 µin | 0.38 µm | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | |
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell | 4-40 | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | Grounding Indents Mounting Brackets Shielded | 3 A | 2 | Flash | ||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell | 4-40 | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | Flash | ||
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell | 4-40 | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 30 Áin | 0.76 Ám | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | 2 | |
 EDAC Inc. | Black | -55 C | 85 °C | Brass Phosphor Bronze | Polyester Thermoplastic | 4 | 37 | 37 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Right Angle Through Hole | Housing/Shell (Unthreaded) | Signal | Solder | Nickel Plated Steel | UL94 V-0 | D-Sub - Stacked | Gold | 15 µin | 0.38 µm | Grounding Indents Mounting Brackets Shielded | 3 A | 2 |
