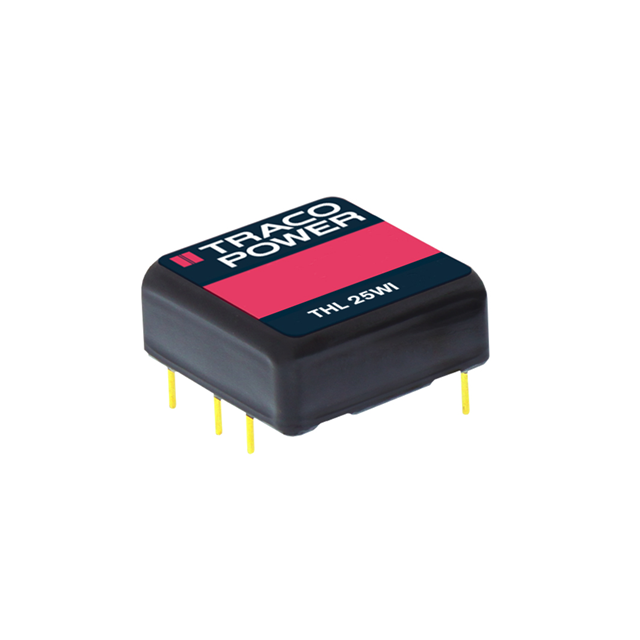

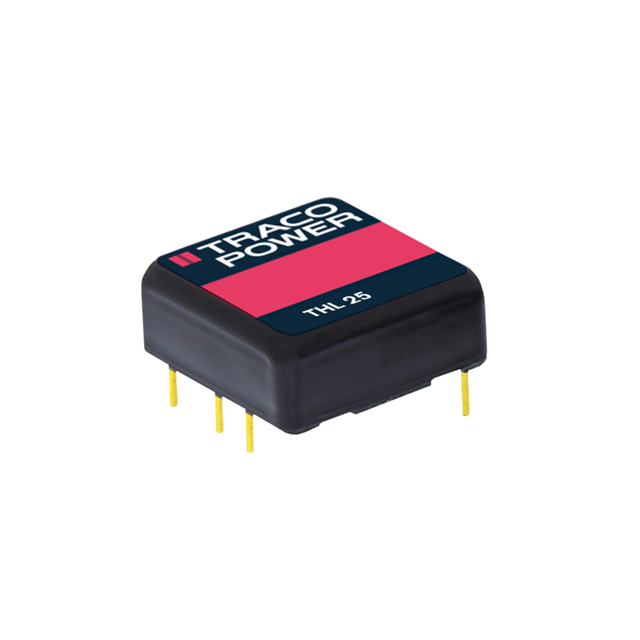

THL 25 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 12V 25W
| Part | Features | Package / Case | Voltage - Output 1 | Power (Watts) | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Applications | Type | Voltage - Input (Min) [Min] | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 12 V | 25 W | 1 | 2.09 A | 1.5 kV | ITE (Commercial) | Isolated Module | 18 V | 90 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 75 V | ||
 Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 15 V | 25 W | 1 | 1.67 A | 1.5 kV | ITE (Commercial) | Isolated Module | 36 V | 90 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 75 V | ||
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 15 V | 25 W | 2 | 840 mA | 1.5 kV | ITE (Commercial) | Isolated Module | 9 V | 89 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 36 V | -15 V | |
 Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 12 V | 25 W | 2 | 1.04 A | 1.5 kV | ITE (Commercial) | Isolated Module | 36 V | 89 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 75 V | -12 V | |
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 5 V | 25 W | 1 | 1.5 kV | ITE (Commercial) | Isolated Module | 36 V | 90 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 75 V | 5 A | ||
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 15 V | 25 W | 2 | 840 mA | 1.5 kV | ITE (Commercial) | Isolated Module | 9 V | 89 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 18 V | -15 V | |
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 12 V | 25 W | 1 | 2.09 A | 1.5 kV | ITE (Commercial) | Isolated Module | 9 V | 89 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 18 V | ||
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 3.3 V | 20 W | 1 | 6 A | 1.5 kV | ITE (Commercial) | Isolated Module | 18 V | 88 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 36 V | ||
Traco Power | OVP Remote On/Off SCP | 6-DIP Module | 3.3 V | 20 W | 1 | 6 A | 1.5 kV | ITE (Commercial) | Isolated Module | 9 V | 87 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 80 ¯C | -40 °C | Through Hole | 18 V |
