ZV40K Series

Catalog

MLV, 40V (VRMS), 10%, 1210 250A

Part	Maximum AC Volts [Max]	Energy	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Current - Surge	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Package / Case	Package / Case	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Mounting Type	Qualification	Grade
Stackpole Electronics Inc ZV40K1210T251N	40 V	2.4 J	74.8 V	56 V	250 A	61.2 V	68 V	1210	3225 Metric	570 pF	125 °C	-55 °C	1	MLCV Surface Mount
Stackpole Electronics Inc ZV40K1206G121N	40 V	0.8 J	74.8 V	56 V	120 A	61.2 V	68 V	1206 (3216 Metric)		1 kHz 370 pF	125 °C	-55 °C	1	MLCV Surface Mount
Stackpole Electronics Inc ZV40K2220T102N	40 V	9.2 J	74.8 V	56 V	1 kA	61.2 V	68 V	2220	5750 Metric				1	Surface Mount	AEC-Q200	Automotive

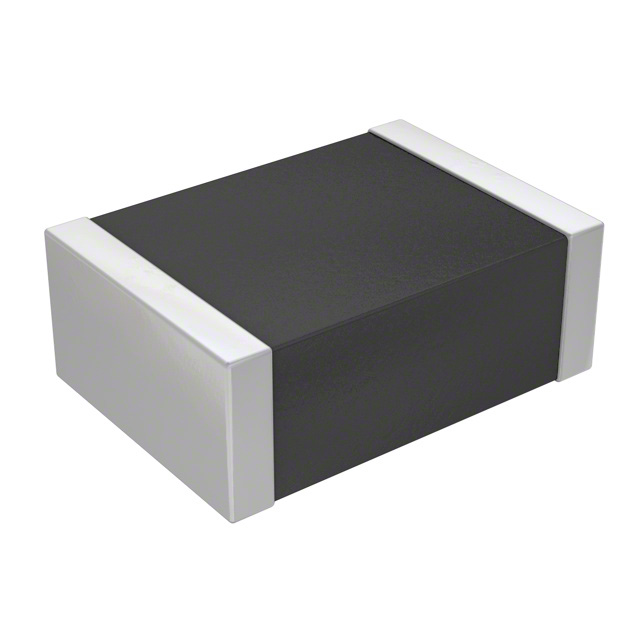

Stackpole Electronics Inc ZV40K1812T601N	40 V	4.8 J	74.8 V	56 V	600 A	61.2 V	68 V	1812 (4532 Metric)					1	Surface Mount	AEC-Q200	Automotive
Stackpole Electronics Inc ZV40K1206T121N	40 V	0.8 J	74.8 V	56 V	120 A	61.2 V	68 V	1206 (3216 Metric)		1 kHz 370 pF	125 °C	-55 °C	1	MLCV Surface Mount
